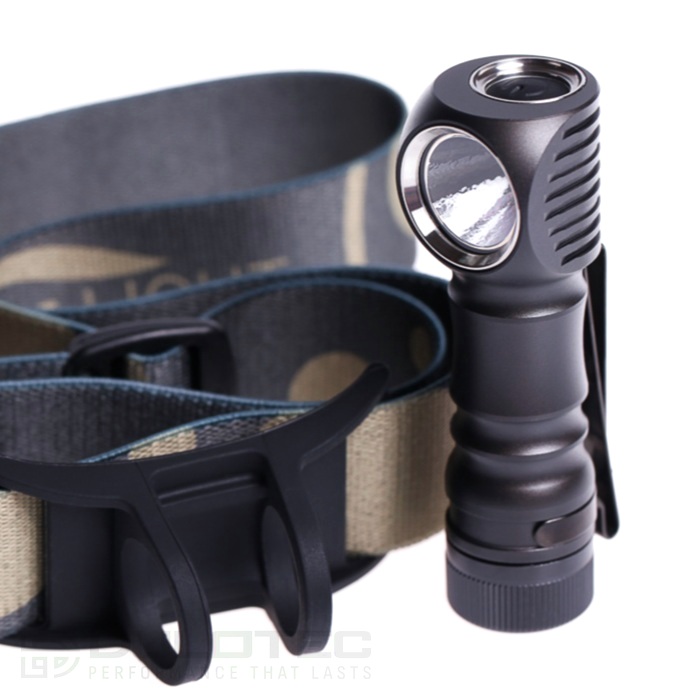

ZebraLIGHT H54c N headlamp, 4000K neutral light with high colour rendering, AA

ZebraLight H54c N headlamp – precision and efficiency in a compact design

ZebraLight headlamps are among the best in the world – not because of marketing, but because of their genuine performance. Every detail has been thought through to the very last detail, without any unnecessary compromises.

If you’re looking for a headlamp that combines power, efficiency, precise control and reliability – the ZebraLight H54c N is one of the few that achieves this without compromise.

Why ZebraLight headlamps are among the best on the market

• Extreme efficiency – maximum battery output with minimal losses thanks to buck-boost drivers
• High colour rendering (CRI 93) – realistic colours, which are critical when working on electrical installations
• Constant-current driver – stable light output without dips or flickering
• Compact design – real power in a small body
• Precise control – a simple interface with extensive customisation options
• Unibody design – the body is machined from a single piece of aluminium
• Type III Hard Anodising – a coating approximately 2 to 3 times more durable than that of a standard torch
• Encapsulated electronics – the driver is sealed with thermally conductive silicone for durability, cooling and water resistance

What is the ZebraLight H54c N suitable for?

• Professional use – security, inspections, technical work
• Hiking and camping – excellent balance between power and runtime
• Hunting and fishing – good range and neutral light with realistic colours
• EDC (everyday carry) – a compact yet robust tool
• Emergencies – reliability and long battery life in low-power modes
• Search and navigation – stable brightness

ZebraLight series – classification

• SC series – handheld torches (EDC, general-purpose)
• H series – headlamps (work, hiking)
• HI – longer range with a more focused beam
• F / Flood – wide illumination for greater comfort
• c/w (CRI) – better colour rendering and neutral light

LED and colour characteristics

• LED: Nichia 519A-V1
• Colour temperature (CCT): 4000K
• Colour rendering index (CRI): 93
• Shade deviation: 3-step

Lighting Levels

The torch has 3 main levels – High, Medium and Low. Each can be programmed to one of its two sub-levels. The second sub-level can be further adjusted to different brightness levels.

Luminous flux and runtime

High

• H1 – 245 lm (1.3 hours)
• H2 – 203 lm (1.7 hours) / 160 lm (2.1 hours) / 105 lm (3.5 hours)

Medium

• M1 – 57 lm (6.5 hours)
• M2 – 16 lm (30.6 hours) / 8.3 lm (2.8 days) / 3 lm (6.8 days)

Low

• L1 – 0.9 Lm (18 days)
• L2 – 0.22 lm (1.9 months) / 0.06 lm (3.3 months) / 0.02 lm (5.2 months)

Beacon / Strobe modes

• Beacon 0.2 Hz – Low
• Beacon 0.2 Hz – H1
• Strobe 4 Hz – H1
• Strobe 19 Hz – H1

Luminous flux is measured according to ANSI OTF (Out The Front). Runtimes have been tested using Panasonic Eneloop Pro AA batteries. The remaining charge (approximately 10–20%) following automatic dimming is not included in the runtime figures.

Electrical specifications

• Operating voltage: 0.7V – 2.0V
• Battery: one AA-size battery – NiMH, lithium or alkaline. Panasonic Eneloop or Eneloop Pro are recommended. The battery is not included in the pack.
• Standby current: negligible – significantly lower than the battery’s self-discharge rate

Beam type

• 80° spill
• 12° concentrated core (hot spot)

Dimensions and weight

• Head diameter: 21.8 mm
• Length: 75 mm
• Weight: 31 g
• With an Eneloop AA battery: 56 g
• With Eneloop AA battery and headband: 79 g

Features and design

• Battery capacity indicator – the LED flashes 1–4 times after 4 short clicks
• All levels are current-regulated
• Automatic brightness reduction when the battery is low
• Durable electronic button with a smooth action
• Intuitive user interface with quick access to all levels and beacon/strobe modes
• Precision CNC-machined unibody casing made from high-quality aluminium
• Patented heat dissipation design – the LED board is directly connected to the body
• Type III Class I hard anodised finish
• Sealed and potted driver electronics
• Reverse battery insertion protection
• Tempered optical glass
• Orange peel reflector
• Power can be cut off by gently unscrewing the rear cap
• IPX8 waterproof rating (2 metres, 30 minutes)

Headlamp controls

Basic controls

• 1 short click – switches to High or turns off
• 2 short clicks – switches to Medium
• 3 quick clicks – activates beacon-strobe mode
• Hold for over 0.6 seconds – switches to Low, then Medium and High; release at the desired level

Advanced control and configuration

• Hold to cycle through Low → Medium → High; release at the desired level
• Double-click to switch between the two sub-levels of the current main level
• The sub-level selection is retained after switching off and when changing the battery
• 6 double-clicks at the selected level start configuration of the second sub-level
• During configuration: double-click cycles through brightness levels; single click saves and switches off
• Battery indicator: 4 short clicks from the OFF position – the LED flashes 1–4 times
• Beacon-strobe is activated with 3 clicks from the OFF position; a double-click cycles through the modes

Mode groups

• G5 (factory setting) – 5 clicks from OFF
• G6 – 6 clicks from OFF
• G7 – 7 clicks from OFF
• The selection is saved after switching off and when the battery is replaced

G5 (factory setting)

• H1 – fixed 245 Lm
• H2 – 203, 160 or 105 Lm
• M1 – fixed 57 Lm
• M2 – 16, 8.3 or 3 Lm
• L1 – fixed 0.9 Lm
• L2 – 0.22, 0.06 or 0.02 lm

G6 and G7

• H1, H2, M1, M2, L1 and L2 can be programmed to any of the 12 available brightness levels
• 6 double-clicks at the selected level – enter programming mode
• Double-click – one level up; triple-click – one level down; single click – exit
• Three sequences of 5, 6 or 7 clicks reset the respective group to factory settings

Contents

• Two O-rings
• Pocket clip
• One black silicone holder with a head strap
