ZebraLIght H54Fc N headlamp, wide beam, 4000K neutral light with high colour rendering, AA

ZebraLight H54Fc N headlamp – wide beam with high CRI

It is no coincidence that ZebraLight ranks amongst the world’s leading torch manufacturers. No unnecessary compromises – just genuine performance, refined down to the last detail.

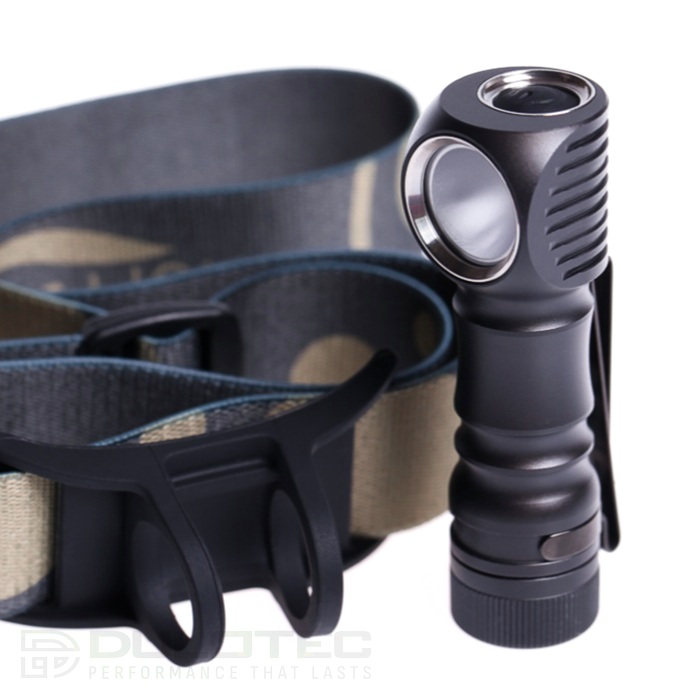

The H54Fc N is a compact headlamp with a wide beam, powered by a single AA battery. It uses a Nichia 519A-V1 LED with a colour temperature of 4000K and a typical CRI of 93 – light that renders true colours accurately and without distortion.

Why ZebraLight is different from mass-market headlamps

• Extreme efficiency – maximises battery life using some of the best buck-boost drivers on the market
• High CRI (93) – crucial when working on electrical installations to distinguish the true colours of cables
• Constant-current driver – stable light output without dips or flickering
• Unibody housing – machined from a single piece of high-quality aluminium
• Type III Hard Anodising – a coating with approximately 2–3 times higher wear resistance compared to mass-produced torches
• Potting compound – the electronics are encapsulated in thermally conductive silicone for better cooling, impact resistance and water resistance
• Compact design – real power in a small package
• Precise control – an intuitive interface with extensive customisation options

What it is suitable for

• Professional use – security, inspections, technical work
• Tourism and camping – an excellent balance between power and battery life
• Hunting and fishing – good range and neutral light with realistic colours
• EDC (everyday carry) – a compact yet robust tool
• Emergencies – reliability and long battery life on low settings
• Search and navigation – stable brightness without flickering

Luminous flux and runtime

All values are measured according to the ANSI OTF standard. Runtimes were tested using Panasonic Eneloop Pro AA batteries. The remaining charge (approximately 10–20%) after automatic dimming is not included in the runtime.

High mode

• H1 – 238 lm (1.3 hours)
• H2 – 197 lm (1.7 hours) / 155 lm (2.1 hours) / 102 lm (3.5 hours)

Medium

• M1 – 55 lm (6.5 hours)
• M2 – 15 lm (30.6 hours) / 8.1 lm (2.8 days) / 2.9 lm (6.8 days)

Low

• L1 – 0.9 lm (18 days)
• L2 – 0.21 lm (1.9 months) / 0.06 lm (3.3 months) / 0.02 lm (5.2 months)

Beacon and Strobe modes

• Beacon 0.2 Hz – Low
• Beacon 0.2 Hz – H1
• Strobe 4 Hz – H1
• Strobe 19 Hz – H1

Headlamp controls

The headlamp has 3 main levels (High, Medium, Low) and a beacon-strobe mode. Each main level has two sub-levels, the second of which can be further programmed.

Basic operation

• 1 short click – switches to High or turns off
• 2 short clicks – switches to Medium
• 3 short clicks – activates beacon-strobe mode
• Hold (for over 0.6 seconds) – switches to Low, then cycles through Medium and High; release to select the desired level

Advanced control and configuration

Holding the button cycles through Low to High regardless of the current level. A double-click switches between the two sub-levels of the current main level. The selection is retained after switching off and when changing the battery.

The second sub-level (H2, M2, L2) is programmed by double-clicking six times at the relevant level. Subsequent double-clicks cycle the torch through the different brightness levels. A single short click saves the selection and switches the torch off.

The battery indicator is activated by 4 rapid clicks whilst the torch is off – the main LED flashes 1–4 times depending on the remaining charge.

Mode Groups

The torch supports three mode groups: G5 (factory setting), G6 and G7.

• G5 is selected with 5 clicks from the OFF position – H1 fixed at 238 lm; H2 – 197, 155 or 102 lm; M1 – 55 lm; M2 – 15, 8.1 or 2.9 lm; L1 – 0.9 lm; L2 – 0.21, 0.06 or 0.02 lm
• G6 is selected with 6 clicks from OFF
• G7 is selected by clicking 7 times from the OFF position
• In G6 and G7, all sub-levels (H1, H2, M1, M2, L1, L2) can be programmed to any of the 12 available brightness levels
• In programming mode: double-click – one level up; triple-click – one level down; single click – exit
• Three consecutive series of 5, 6 or 7 clicks reset the respective group to factory settings

Technical specifications
