Vapcell 14500 1000mAh 3A Battery

5,50 €

Type: 14500
Capacity: 1000mAh
Dimensions: (Height) 48.6 mm (Diameter) 14.1 mm
Voltage: 3.6V
Maximum continuous discharge current: 3A

Add 70,00 € to cart and get FREE SHIPPING!

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Прочетох и съм съгласен с privacy policy

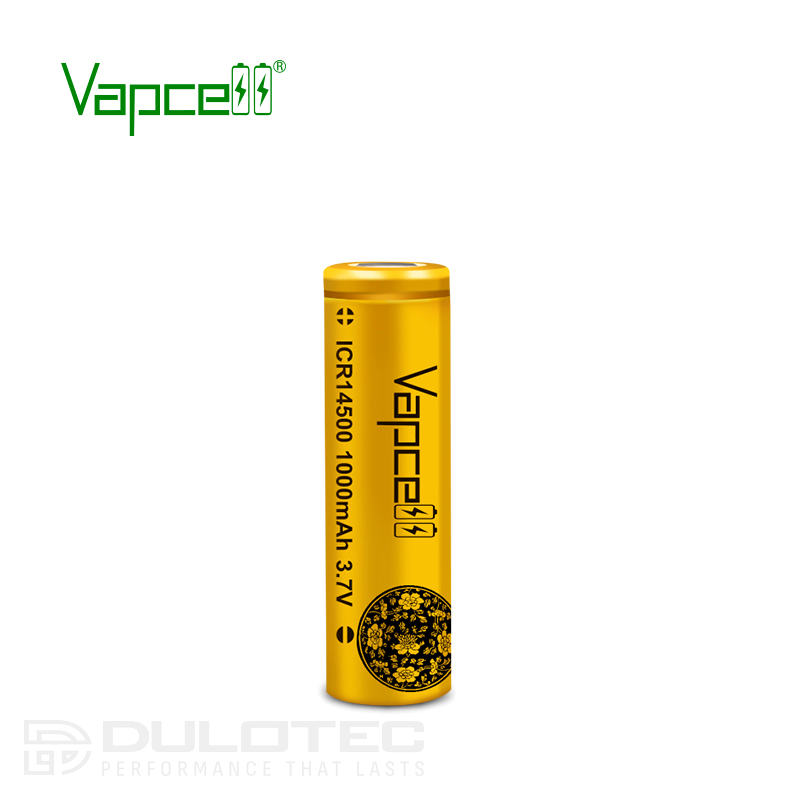

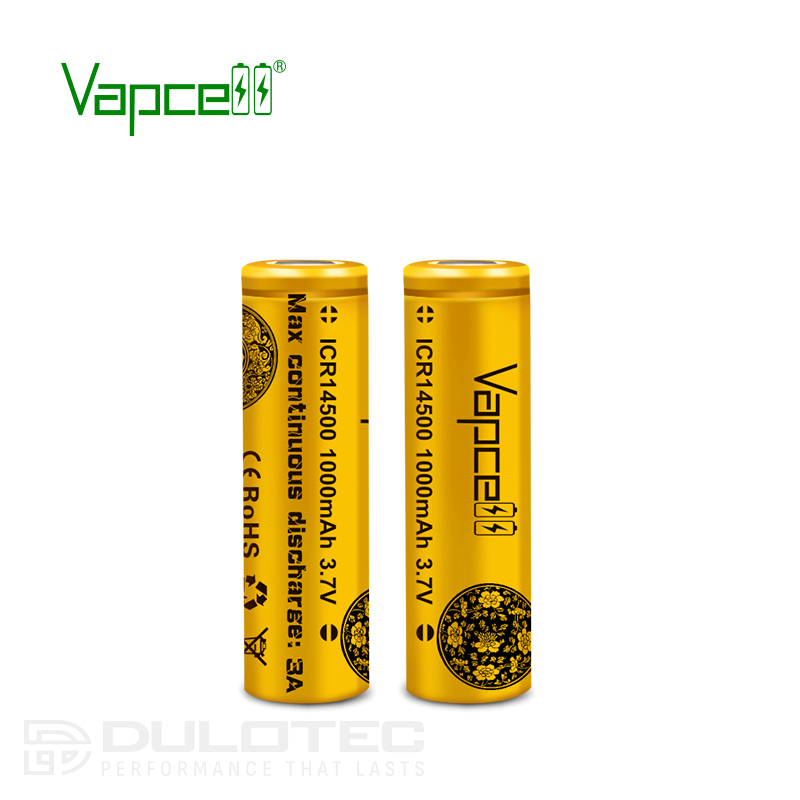

Vapcell ICR 14500 – a reliable lithium-ion battery for flashlights

Vapcell is a well-established brand in the rechargeable battery market. The ICR 14500 1000mAh model features a flat top and is compatible with a wide range of flashlights.

The battery offers consistent performance and reliable operation during everyday use.

Key Features

Capacity: 1,000 mAh (at a 0.2C discharge rate)
Minimum capacity: 900 mAh (at a 0.2C discharge rate)
Rated voltage: 3.6 V
Maximum continuous discharge current: 3A
Fast charging: 1000 mA
Standard charging: 500 mA – CCCV, cuts off at 50 mA
Charging end voltage: 4.20 V
Discharge-end voltage: 2.5 V
Tip type: flat
Color: gold
Weight: 25 g

Safety Guidelines

Lithium-ion batteries require careful handling. Improper use may result in a fire or explosion.

Do not modify, disassemble, puncture, or crush the battery.
Do not short-circuit the system.
Do not expose to water, fire, or high temperatures.
Do not use in defective devices.
Do not throw into a fire.
Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
Do not use if the foil is damaged.
Store it only in its protective case—not in a pocket or purse.

Specifications	Value
Brand	Vapcell
Model	ICR 14500 1000mAh
Series	14500
Type	Lithium-ion (Li-Ion)
Capacity	1,000 mAh (0.2C discharge)
Minimum capacity	900 mAh (0.2C discharge)
Voltage	3.6 V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5 V
Maximum continuous discharge current	3 A
Fast Charging	1,000 mA
Standard Charging	500 mA – CCCV, trip at 50 mA
Peak Type	Flat
Color	Gold
Weight	25 years

Frequently Asked Questions

What is the difference between a flat-top and a dome-top 14500 battery?

Flat-top batteries are designed for devices in which contact is made via a spring or other mechanism. The Vapcell ICR 14500 1000mAh model features a flat top. Before purchasing, check whether your flashlight or device requires a flat or rounded top to ensure proper contact and safe operation.

What is the difference between a capacity of 1,000 mAh and a minimum capacity of 900 mAh?

The rated capacity of 1000 mAh is the typical value measured under standard conditions and at a discharge current of 0.2C. The minimum capacity of 900 mAh is the guaranteed lower limit—every battery in this series must provide at least this much. This distinction demonstrates Vapcell’s reliability and quality control.

What does CCCV mean when charging this battery?

CCCV stands for Constant Current – Constant Voltage. During standard charging at 500 mA, the battery is first charged with a constant current, and once the voltage reaches 4.20 V, the charger switches to constant voltage mode. Charging ends automatically when the current drops to 50 mA. It is important to use a charger that supports this protocol.

Can I charge the Vapcell 14500 battery with a standard AA battery charger?

No. The 14500 format is physically similar to an AA battery, but it is a lithium-ion battery with a voltage of 3.6 V, whereas standard AA batteries are 1.5 V. Charging with an incompatible charger can be dangerous and may damage the battery. Use only chargers specifically designed for 14500-format lithium-ion batteries with a voltage of up to 4.20 V.

How should I properly store the Vapcell 14500 battery?

The battery should be stored in a special protective case, away from water, fire, and direct sunlight. Do not carry it loose in a pocket or bag—contact with metal objects can cause a short circuit. It is recommended to store it at a moderate temperature and not to leave it fully discharged for long periods.

What types of flashlights is the Vapcell ICR 14500 battery suitable for?

This battery is suitable for a wide range of flashlights that use the 14500 format with a voltage of 3.6 V. It is important to check whether your flashlight supports lithium-ion batteries from this series, as some models are designed only for standard AA batteries. If in doubt, check your flashlight’s manual.

What should I do if the battery foil is damaged?

Do not use a battery with a damaged or broken foil. The foil insulates the metal casing and prevents accidental contact. If the foil is damaged, there is a risk of a short circuit, overheating, or even a fire. Such a battery must be disposed of safely in accordance with local regulations for the disposal of lithium-ion batteries.
