Vapcell P1608A 16340 800mAh Battery with Protection and Micro USB Charging

8,99 €

Type: 16340
Capacity: 800mAh
Dimensions: (Height) 36.1 mm (Diameter) 16.6 mm
Voltage: 3.6V
Maximum continuous discharge current: 10A
Micro-USB charging
port

Add 70,00 € to cart and get FREE SHIPPING!

In stock

The Vapcell P1608A is a 16340 rechargeable battery with a capacity of 800mAh and a built-in Micro USB charger. It features built-in protection and is suitable for a wide range of devices—with the exception of flashlights.

Key Features of the Vapcell P1608A 16340

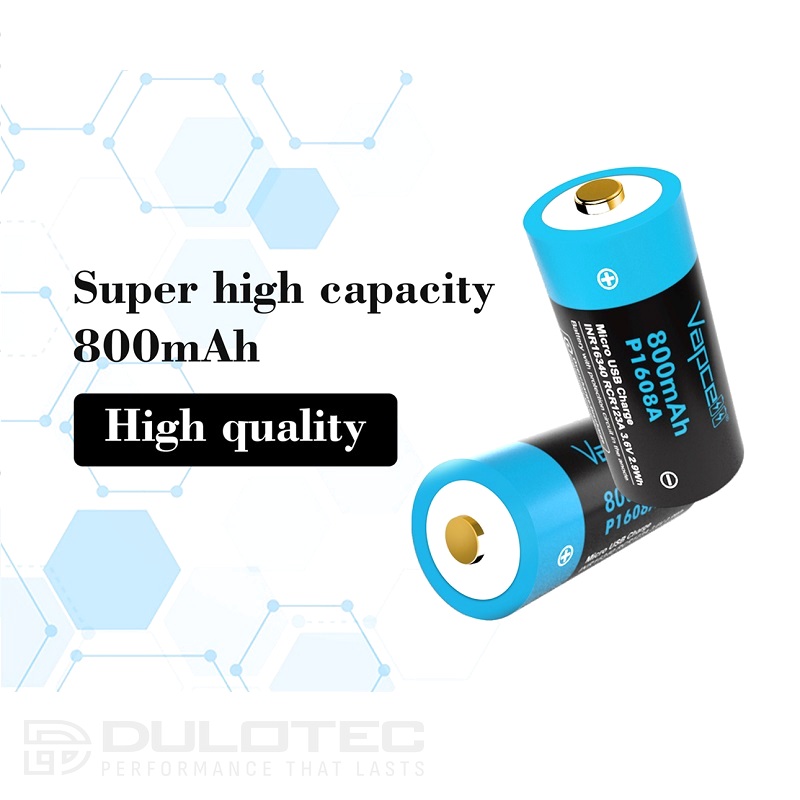

Capacity: 800 mAh
Rated current (continuous): 10 A

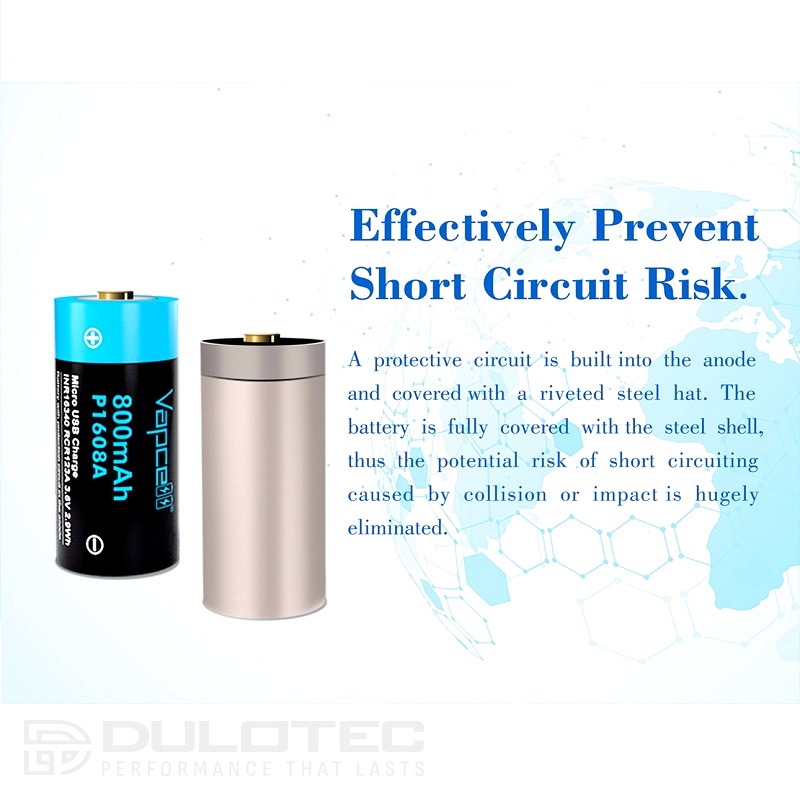

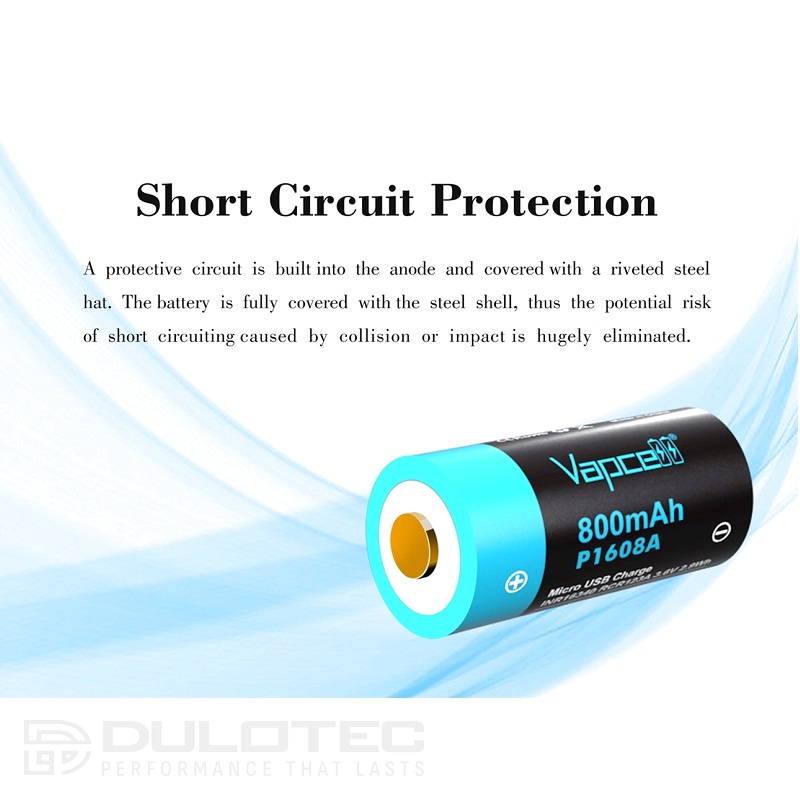

Negative-pole protection—allows continuous discharge at 10A
Dimensions: 16.6 x 36.1 mm
Weight: approximately 22 g
Rated voltage: 3.6 V
Charging end voltage: 4.20 V
Discharge-end voltage: 2.5 V

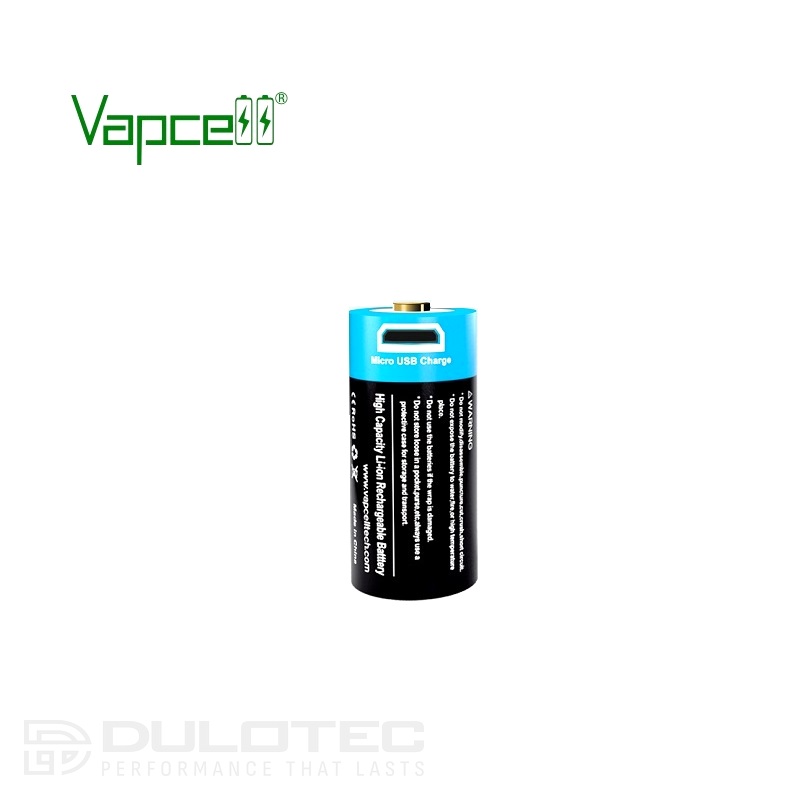

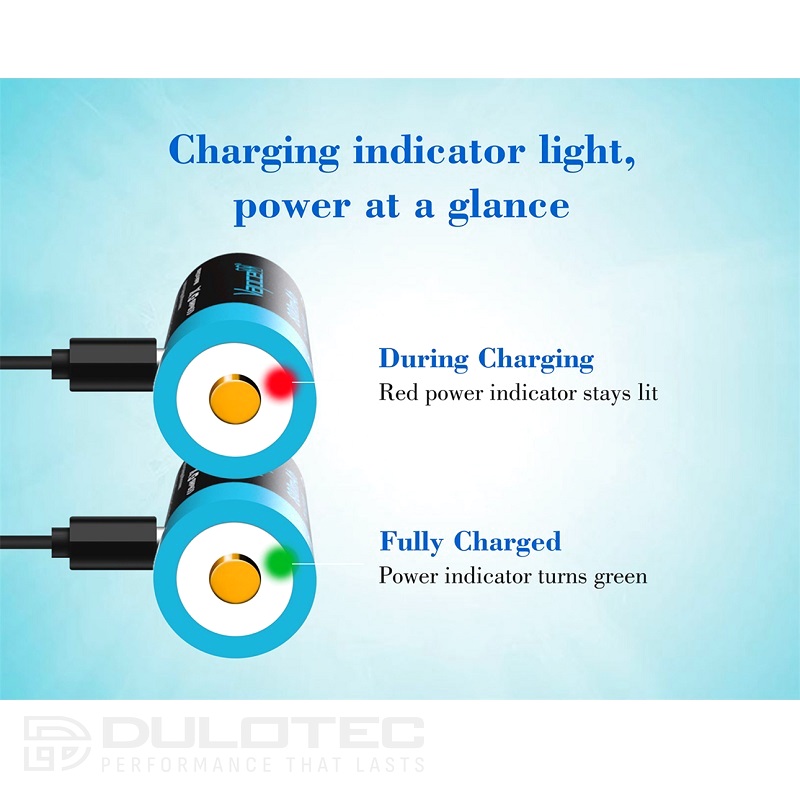

Built-in Micro USB charger

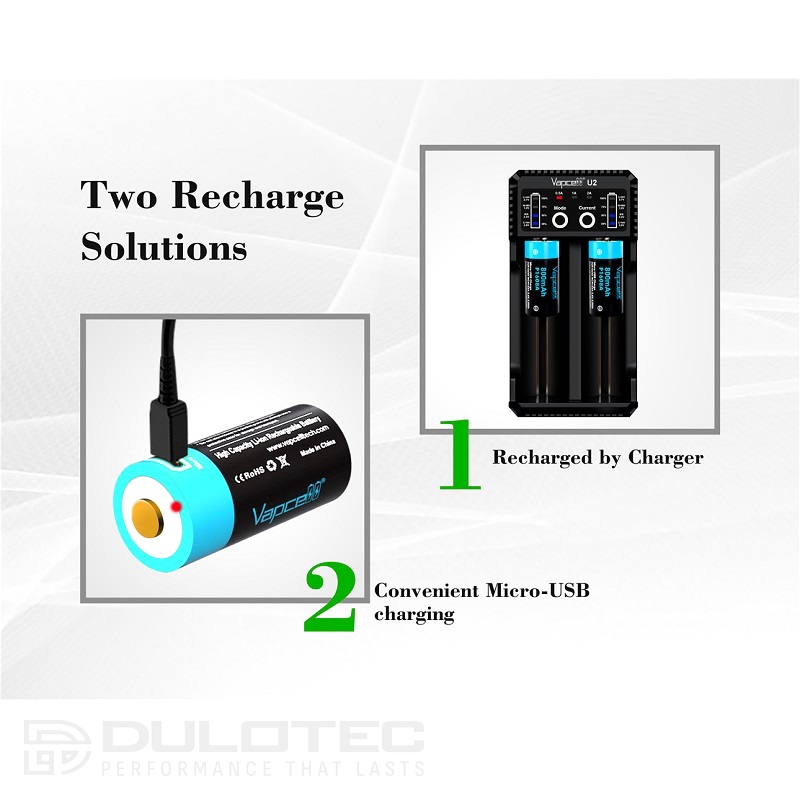

The battery charges directly via Micro USB—no external charger required. It supports both standard and fast charging modes.

Charging current: 375 mA (built-in) / 500 mA normal (CCCV, 50 mA cutoff) / 1000 mA fast
Internal resistance: approximately 100 mΩ (AC 1 kHz)
Battery life: over 800 cycles at 1C discharge rate and 70% DOD

Important Safety Rules

If used or stored improperly, the battery may catch fire or explode. Follow these guidelines:

Do not modify, disassemble, drill, cut, crush, or short-circuit the device.
Do not expose to water, fire, or high temperatures
Do not use in defective devices
Do not throw it into a fire or cause a short circuit
Do not overcharge, do not undercharge, and do not charge at sub-zero temperatures

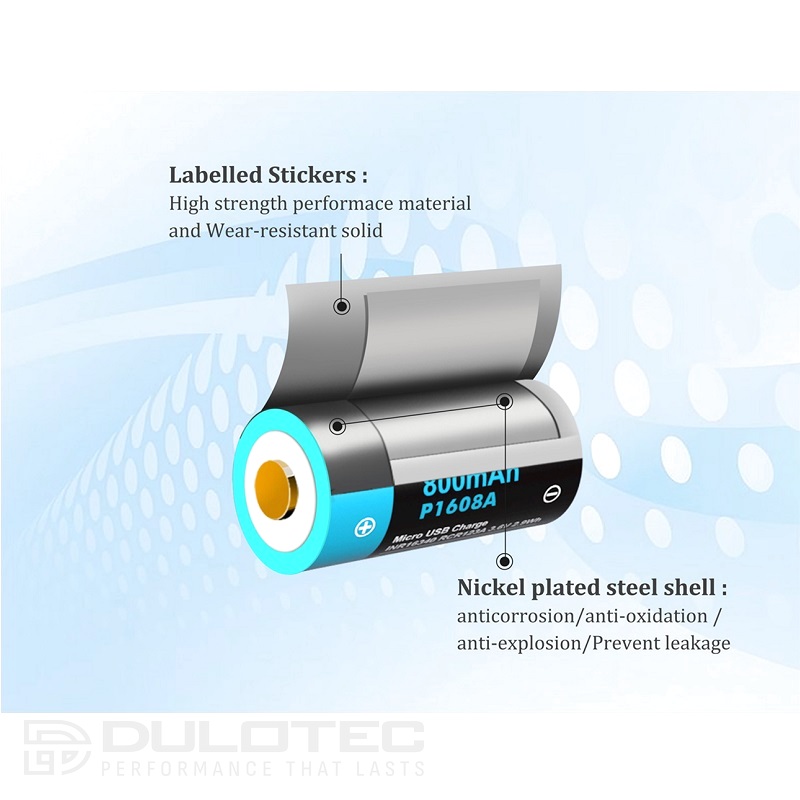

Do not use the battery if the protective film is damaged
Do not store in a pocket or purse—use a protective case

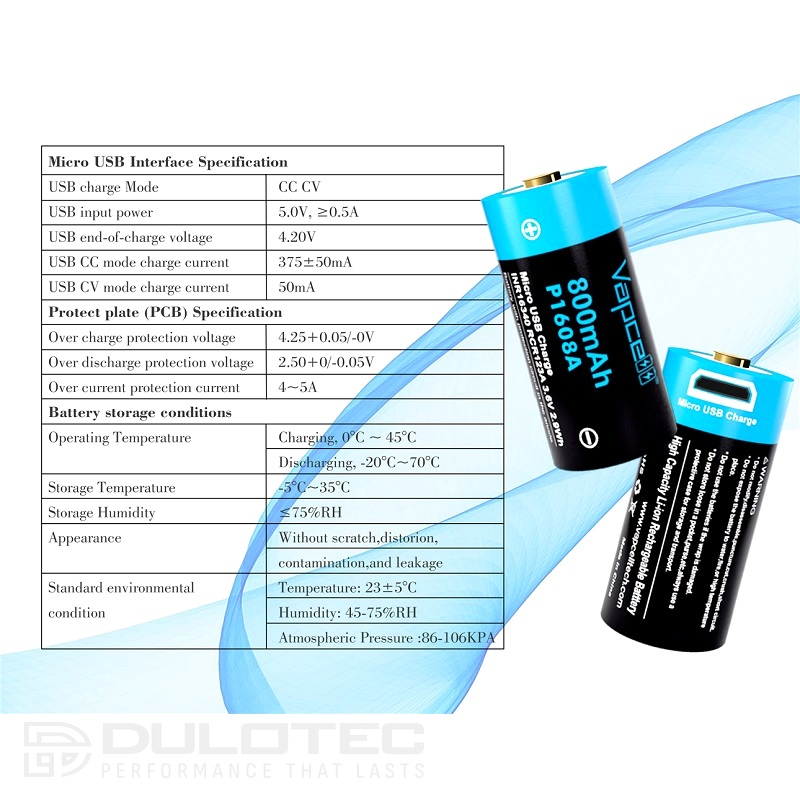

Specifications	Value
Brand	Vapcell
Model	P1608A
Battery Type	16340 Li-Ion
Capacity	800 mAh
Rated Voltage	3.6 V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5 V
Discharge Current (Continuous)	10A
Normal charging	500 mA, CCCV, 50 mA cutoff
Fast Charging	1000 mA
Internal Resistance	approximately 100 mΩ (AC 1 kHz)
Life	over 800 cycles (1C / 70% DOD)
Charging Method	Micro USB (built-in charger)
Dimensions	16.6 × 36.1 mm
Weight	approximately 22 years

Frequently Asked Questions

What is the battery capacity of the Vapcell P1608A?

The Vapcell P1608A battery has a capacity of 800mAh. It is a 16340-type battery and operates at a nominal voltage of 3.6V. The voltage at the end of charging is 4.20V, and at the end of discharging, it is 2.5V. It weighs approximately 22 grams and measures 16.6 x 36.1 mm.

How do you charge the Vapcell P1608A battery?

The battery has a built-in charger with a Micro USB port. Normal charging is at 500 mA using CCCV mode, with a cut-off at 50 mA. Fast charging at 1000mA is also supported. Charging at sub-zero temperatures is not recommended.

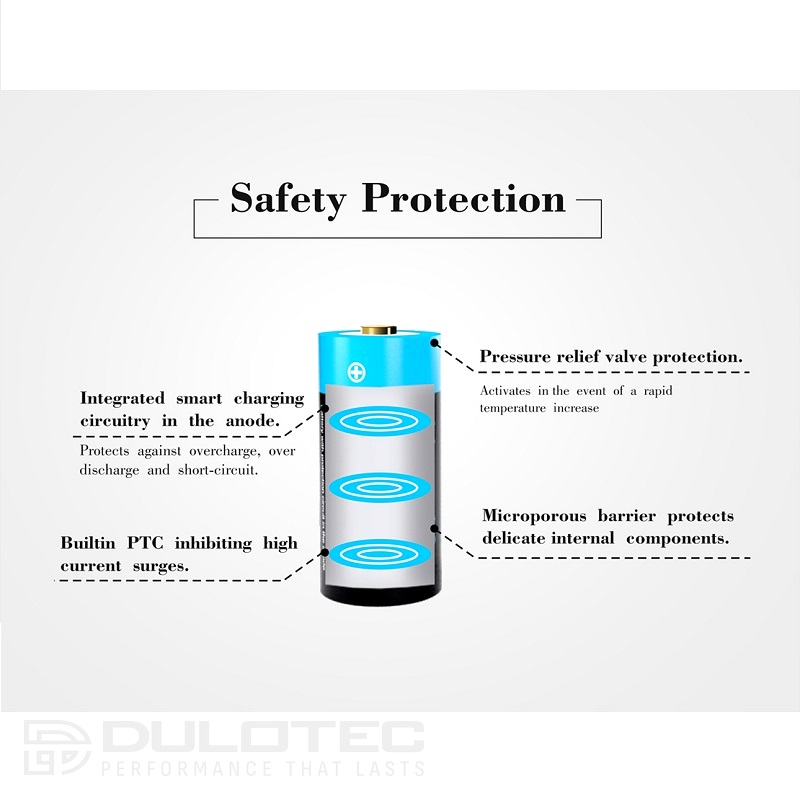

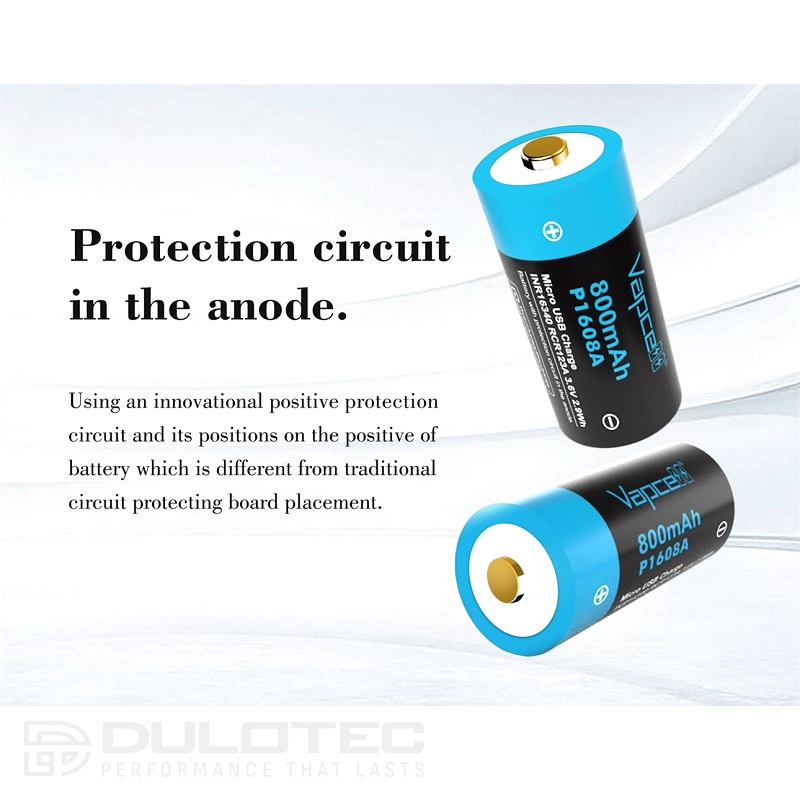

What safety features does the Vapcell P1608A battery have?

The battery has a negative terminal protection feature that allows for continuous discharge at currents up to 10A. This protection prevents the cell from over-discharging and ensures a longer battery life. The internal resistance is approximately 100 mΩ, measured at 1 kHz AC.

How many charge cycles does the Vapcell P1608A battery last?

The battery is designed to withstand over 800 charge and discharge cycles at a 1C discharge rate and a 70% depth of discharge (DOD). This makes it reliable for long-term use under regular operating conditions.

Is the Vapcell P1608A battery suitable for flashlights?

No. The manufacturer explicitly does not recommend using this battery in flashlights. The reason is that the battery’s built-in protection and specific characteristics may not be compatible with the requirements of such devices. For flashlights, it is recommended to use batteries specifically designed for that purpose.

What are the rules for safely storing the Vapcell P1608A battery?

The battery must be stored in a protective case—never in a pocket or bag without protection. It must not be exposed to water, fire, or high temperatures. Do not use the battery if the protective film is damaged. Overcharging, over-discharging, or charging at sub-zero temperatures is not recommended.

What actions are prohibited when using this battery?

Modifying, disassembling, drilling, cutting, crushing, or short-circuiting the battery is prohibited. The battery must not be disposed of in a fire and must not be used in defective devices. Failure to follow these rules may result in the battery catching fire or exploding.
