Vapcell P1409A 14500 Rechargeable Battery, 950 mAh, with Built-in Micro USB Charging

The Vapcell P1409A is a compact 14500-format rechargeable battery with a capacity of 950mAh. It features a built-in Micro USB charging port and a negative terminal protection circuit. The battery supports continuous discharge at currents up to 10A.

Key Features of the Vapcell P1409A Battery

Rated capacity: 950 mAh
Minimum capacity: 880 mAh
Rated voltage: 3.6V
Charging end voltage: 4.20V
Discharge-end voltage: 2.5V
Internal resistance: 130 mΩ (approx., AC 1 kHz)
Dimensions: 14.2 x 50.0 mm
Weight: 22 g (approx.)

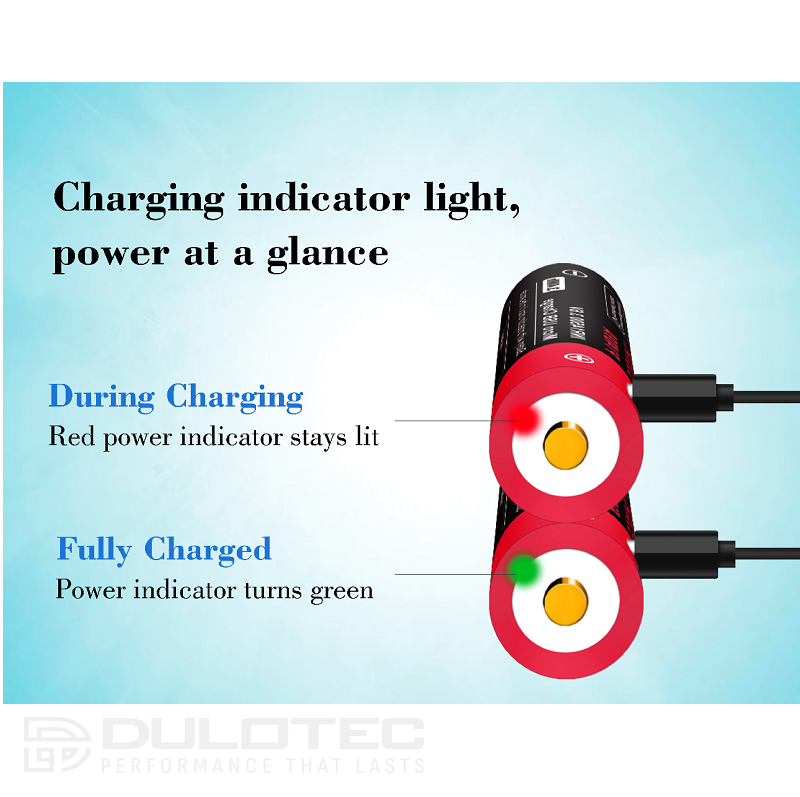

Charging the Battery

Normal charging: 500 mA, CCCV, 50 mA cut-off
Fast charging: 1000mA

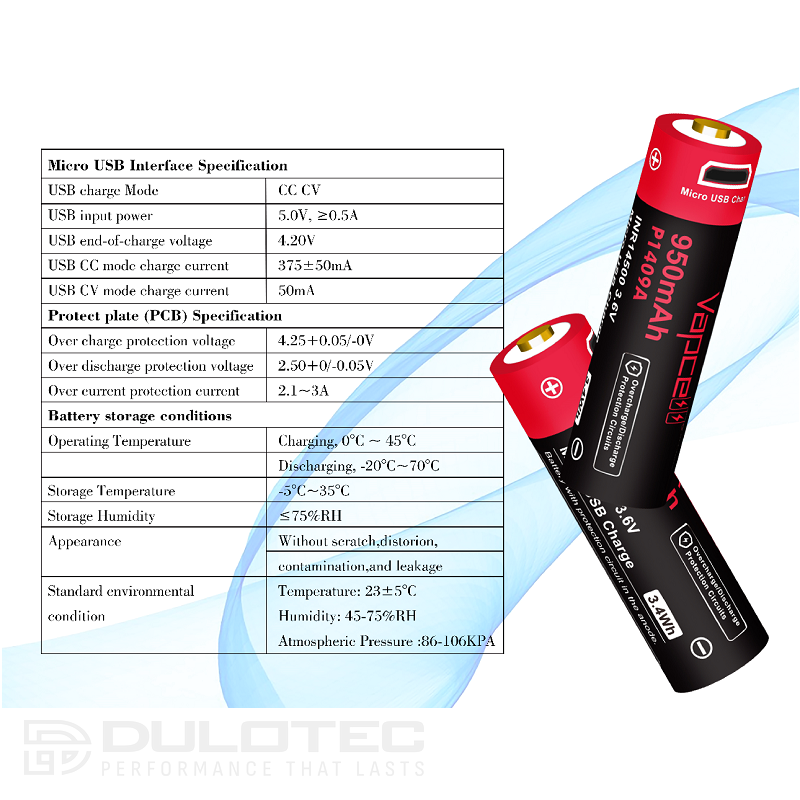

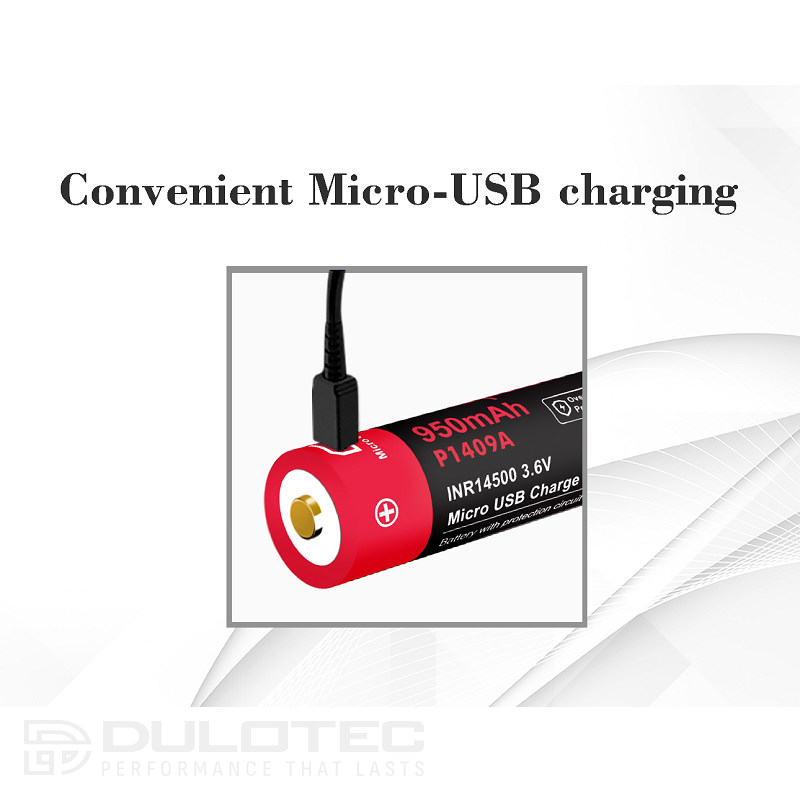

Charging via the built-in Micro USB port: 375 mA

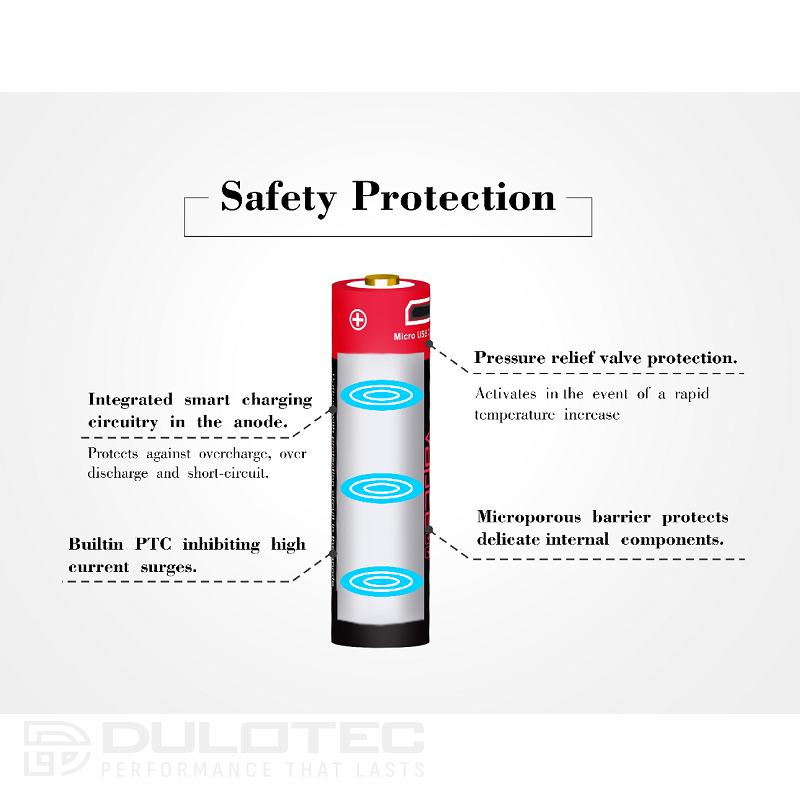

Protection and Safety

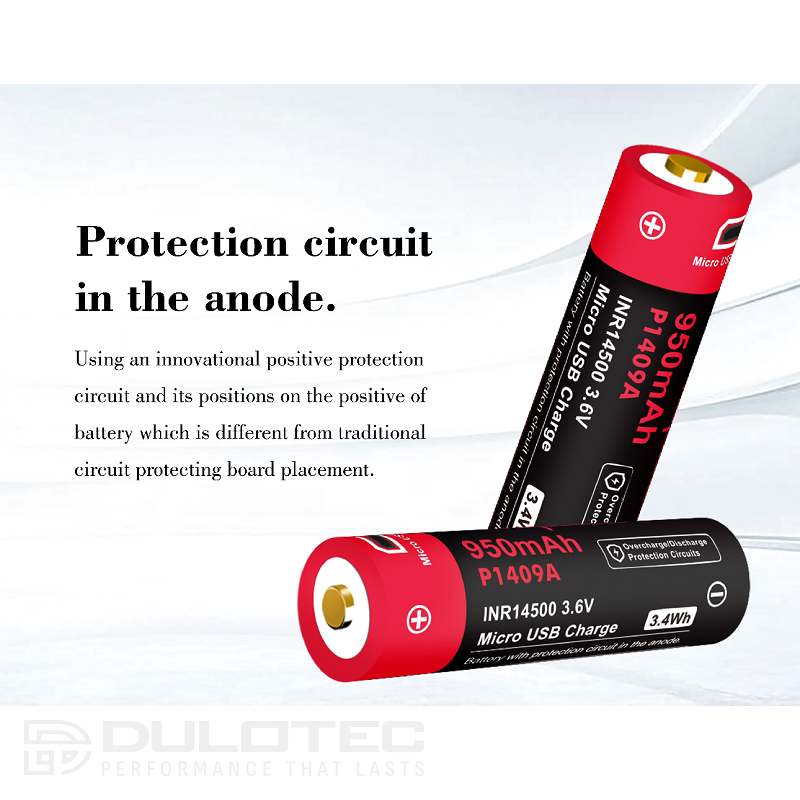

The battery is equipped with negative terminal protection, which ensures stable operation at high currents. Improper use or storage may result in a fire or explosion. Follow these guidelines:

Do not modify, disassemble, puncture, or short-circuit the device.
Do not expose to water, fire, or high temperatures.
Do not use in defective devices.
Do not throw into a fire.
Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
Do not use the battery if the foil is damaged.
Do not carry it in your pocket or purse without a protective case.

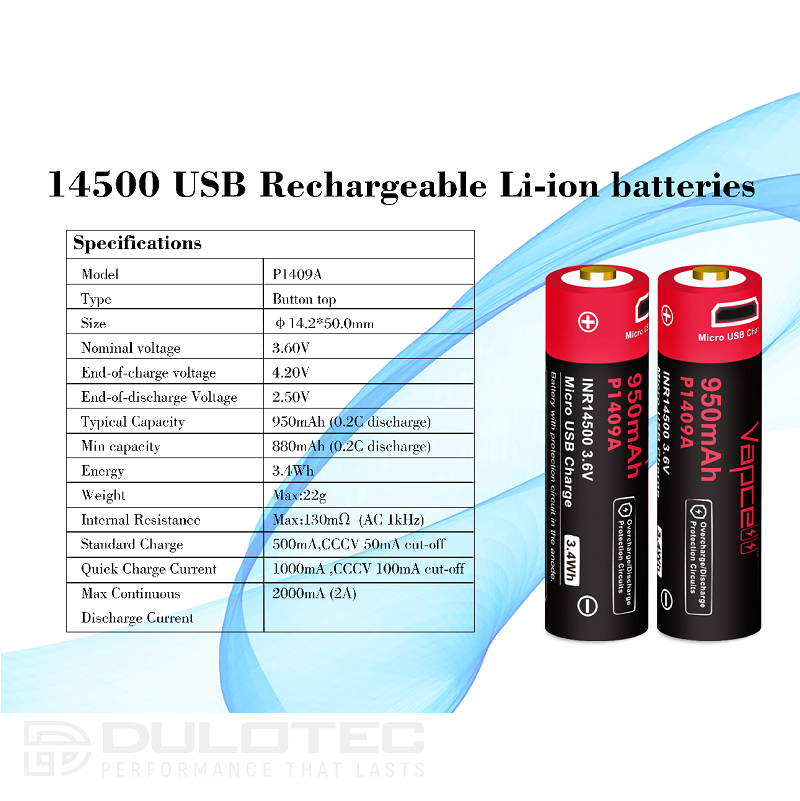

Specifications	Value
Brand	Vapcell
Model	P1409A
Format	14500
Rated Capacity	950 mAh
Minimum capacity	880 mAh
Rated Voltage	3.6V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5V
Internal Resistance	130 mΩ (approx., AC 1 kHz)
Maximum discharge current	10A continuous
Normal charging	500 mA, CCCV, 50 mA cutoff
Fast Charging	1000 mA
Charging via Micro USB	375 mA
Dimensions	14.2 x 50.0 mm
Weight	22 years (approx.)
Charging Method	Built-in Micro USB port
Defense	Negative Balance Protection

Frequently Asked Questions

What is the battery capacity of the Vapcell P1409A?

The rated capacity of the Vapcell P1409A is 950mAh. The minimum guaranteed capacity is 880mAh. This makes it suitable for devices that require a reliable and stable power supply in a compact form factor.

How do you charge the Vapcell P1409A battery?

The battery has a built-in Micro USB port for charging. When charging through this port, the current is 375mA. It also supports standard charging at 500mA (CCCV, 50mA cut-off) as well as fast charging at 1000mA. No external charger is required when using the built-in USB port.

What kind of protection does the Vapcell P1409A battery have?

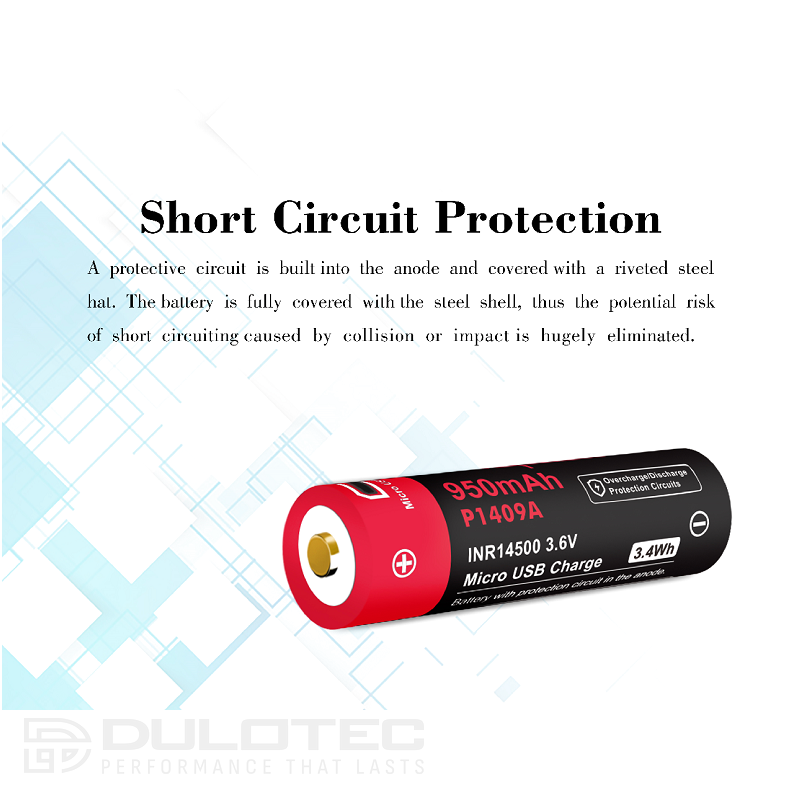

The battery has built-in negative terminal protection. This protection allows for continuous discharge at currents up to 10A. The circuit prevents dangerous operating conditions and ensures a longer cell life when used properly.

What are the dimensions and weight of the Vapcell P1409A?

The battery measures 14.2 x 50.0 mm and weighs approximately 22 grams. The 14500 format is similar in size to a standard AA battery, making it compatible with many devices designed for that size.

What is the operating voltage of the Vapcell P1409A?

The battery's nominal voltage is 3.6V. The voltage at the end of charging reaches 4.20V, and the voltage at the end of discharging is 2.5V. These values are typical for lithium-ion cells of this type.

How do I safely store a Vapcell P1409A battery?

Do not store the battery in a pocket or bag without a protective case. Keep it away from water, fire, and high temperatures. Do not use it if the foil is damaged. Keep it out of the reach of children and store it in a suitable container for lithium-ion batteries.

When should I not use a Vapcell P1409A battery?

Do not use the battery in defective devices or if the foil is damaged. Do not charge it at sub-zero temperatures, and do not over-discharge it. Avoid modifying, disassembling, puncturing, or causing a short circuit. Failure to follow these instructions may result in fire or damage.
