Vapcell N24 18500 Battery, 2400 mAh, 5A

10,99 €

Type: 18500
Capacity: 2400mAh
Dimensions: (Height) 49 mm (Diameter) 18.2 mm
Voltage: 3.6V
Maximum continuous discharge current: 5A

Add 70,00 € to cart and get FREE SHIPPING!

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Прочетох и съм съгласен с privacy policy

Vapcell INR18500 N24 Rechargeable Battery – 2400 mAh, 5 A

The Vapcell INR18500 N24 is a reliable lithium-ion rechargeable battery with a rated capacity of 2400mAh and a maximum continuous discharge current of 5A. It is suitable for flashlights and devices designed for unprotected batteries of the standard 18500 size.

Key Features

Rated capacity: 2400mAh
Minimum capacity: 2300mAh
Maximum continuous discharge current: 5A
Rated voltage: 3.6V
Charging end voltage: 4.20V
Discharge-end voltage: 2.5V
Normal charging: 500 mA, CCCV, 100 mA cut-off
Fast charging: 1500 mA
Tip type: flat
Dimensions: height 49 mm, diameter 18.2 mm
Weight: approximately 36 g

Specifications	Value
Brand	Vapcell
Model	INR18,500 N24
Category	Rechargeable battery
Rated Capacity	2,400 mAh
Minimum capacity	2,300 mAh
Maximum continuous discharge current	5A
Rated Voltage	3.6V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5V
Normal charging	500 mA, CCCV, 100 mA segment
Fast Charging	1500 mA
Peak Type	Flat
Elevation	49 mm
Diameter	18.2 mm
Weight	~36 years
Operating Temperature – Charging	0°C to 45°C
Operating temperature – dilution	-20°C to 75°C
Storage Temperature	-5°C to 35°C

A battery with or without protection—what's the difference?

Protected batteries have a small built-in circuit board that protects the cell from overcharging, over-discharging, and excessive current. When critical levels are reached, the protection circuit automatically shuts off. They are slightly longer and wider than standard batteries, as the added electronics increase their size.

Unprotected batteries come in standard sizes and can deliver a higher current. They are suitable for flashlights designed specifically for this type of battery. Before purchasing, always check the dimensions of the original battery in millimeters and compare them with the device’s technical specifications.

Instructions for Use

Charge the battery using a high-quality lithium-ion battery charger before using it for the first time.
Do not use or store at high temperatures or in high humidity.
Do not throw into fire or water—risk of fire or explosion.
Do not crush, strike, or subject to mechanical impact.
Do not disassemble the battery.
Keep out of reach of children.
The battery may be hot after use—handle with care.
If the device has not been used for an extended period (more than 3 months), charge it before use.

Safety Rules

Do not modify, puncture, cut, or short-circuit the device.
Do not expose to water, fire, or high temperatures.
Do not use in defective devices.
Do not overcharge or over-discharge the battery.
Do not charge at sub-zero temperatures.
Do not use if the protective film is damaged.
Do not carry it in your pocket or purse without a protective case.

Frequently Asked Questions

What is the capacity of the Vapcell INR18500 N24 battery?

The Vapcell INR18500 N24 battery has a rated capacity of 2400mAh and a minimum guaranteed capacity of 2300mAh. The maximum continuous discharge current is 5A. The nominal voltage is 3.6V, the end-of-charge voltage is 4.20V, and the end-of-discharge voltage is 2.5V.

What is the difference between a battery with protection and one without?

Protected batteries have a built-in circuit board that protects them from overcharging, over-discharging, and excessive current. When a critical threshold is reached, the protection circuit breaks the circuit. Unprotected batteries are smaller, can deliver higher current, and are suitable for devices designed specifically for standard cells. Protected batteries are slightly longer and wider due to the added circuit board, which means they do not fit in some flashlights.

What is the correct temperature for charging and discharging?

The Vapcell N24 battery can be charged at temperatures between 0°C and 45°C. Discharging is permitted within a range of -20°C to 75°C. A storage temperature between -5°C and 35°C is recommended. Do not charge at sub-zero temperatures, as this may damage the cell.

How can I tell if this battery is right for my flashlight?

The most reliable way is to measure the dimensions of the original battery in millimeters and compare them to the technical specifications of the Vapcell N24: 18.2 mm in diameter and 49 mm in height. If the flashlight is designed for an unprotected, standard-size 18500 battery, this cell is suitable. You can contact the Dulotec.COM team for further consultation.

How do you properly charge a Vapcell N24 battery?

The battery must be charged using a high-quality charger designed for lithium-ion cells. The normal charging current is 500 mA in CCCV mode, with a cut-off at 100 mA. During fast charging, the current can reach up to 1,500 mA. A full charge is recommended before first use. If the battery has not been used for more than 3 months, charge it before using it again.

What are the rules for the safe storage of lithium-ion batteries?

Store batteries in a protective case—never loose in a pocket or bag, as contact with metal objects can cause a short circuit. Keep them away from moisture, fire, and direct sunlight. Do not expose them to temperatures outside the range of -5°C to 35°C. Do not use a battery with a damaged protective film. Keep out of reach of children.

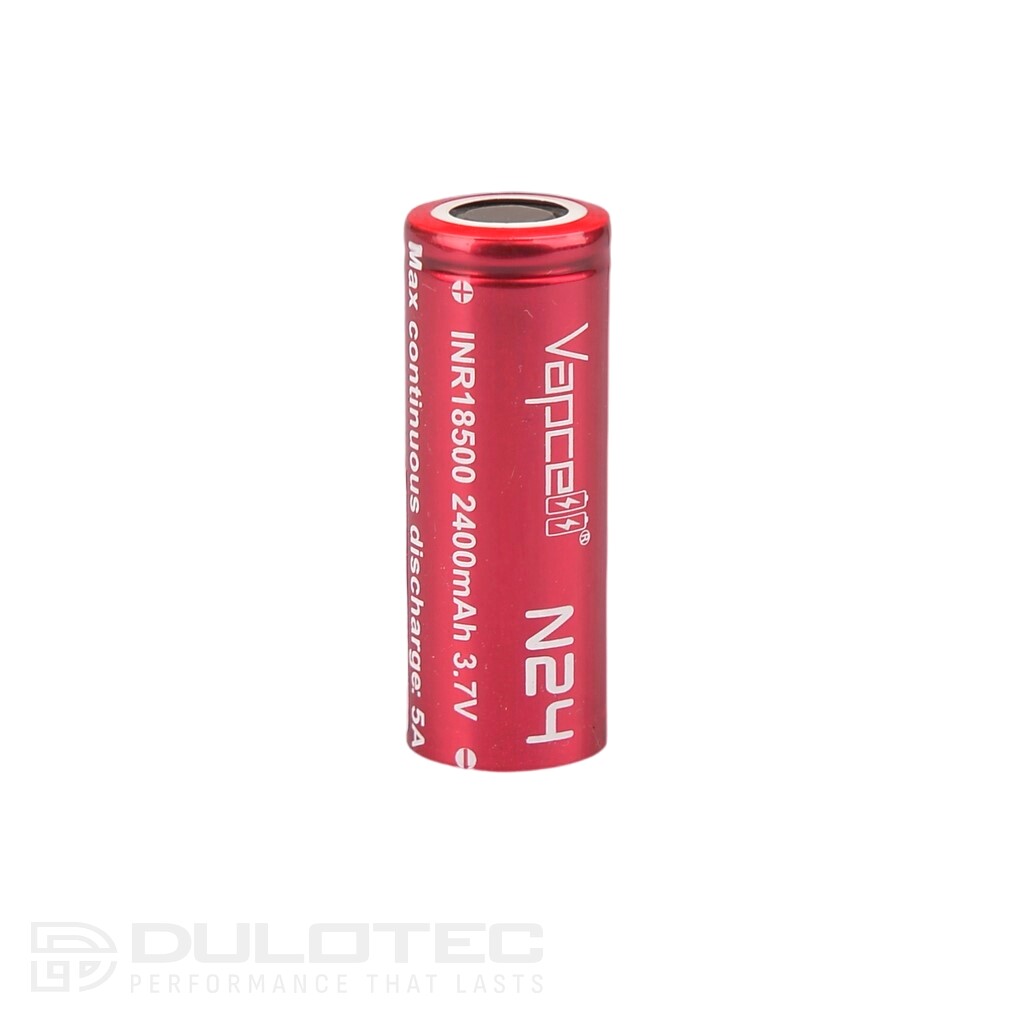

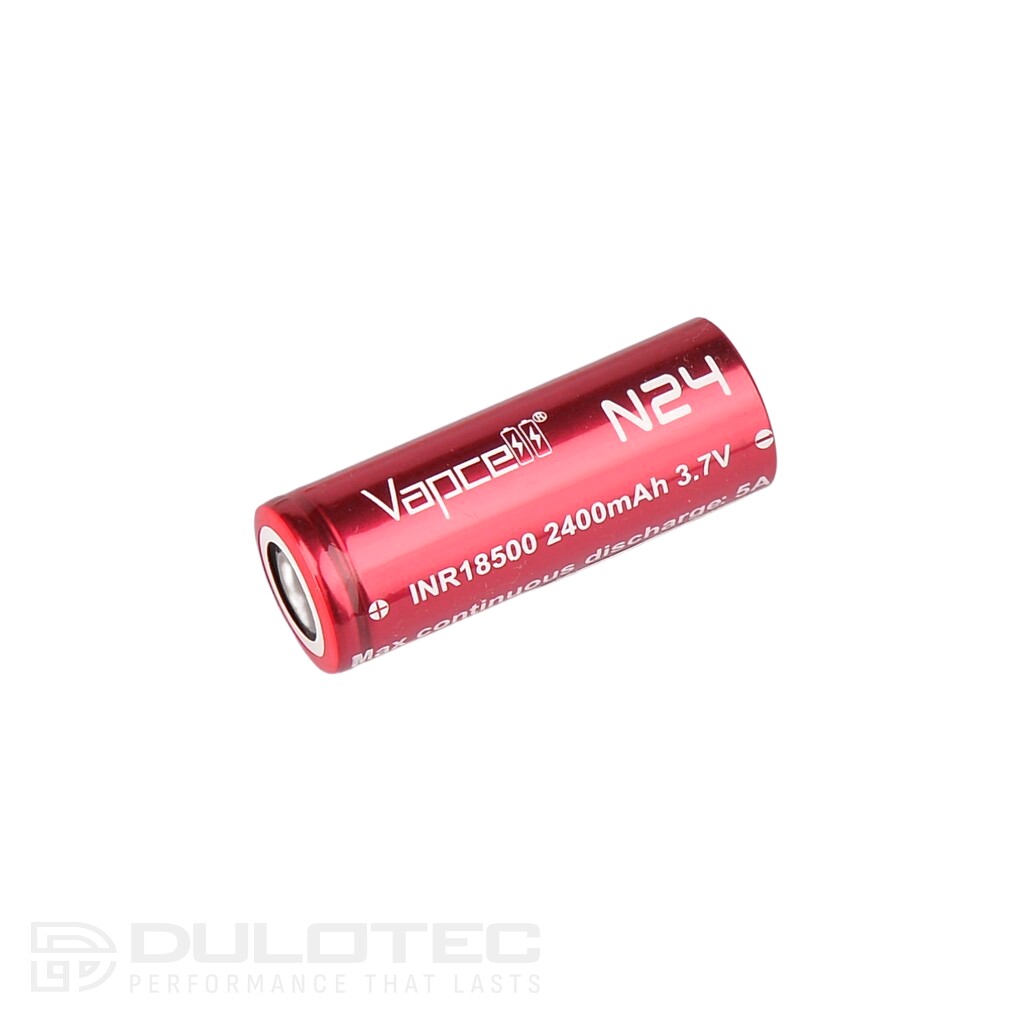

What is the physical form of the Vapcell INR18500 N24?

The battery has a flat positive terminal, a diameter of 18.2 mm, and a height of 49 mm. It weighs approximately 36 grams. It has no protective casing, which means it is exactly the standard size for the 18500 format. The flat top makes it compatible with flashlights where the spring-loaded contact ensures a reliable connection.
