Vapcell J30 18650 Battery, 3000 mAh, 15A/25A, with a protruding positive terminal
7,49 €
- Type: 18650
- Capacity: 3000mAh
- Dimensions: (Height) 65 mm (Diameter) 18.4 mm
- Voltage: 3.6V
- Maximum continuous discharge current: 15A
In stock
Description

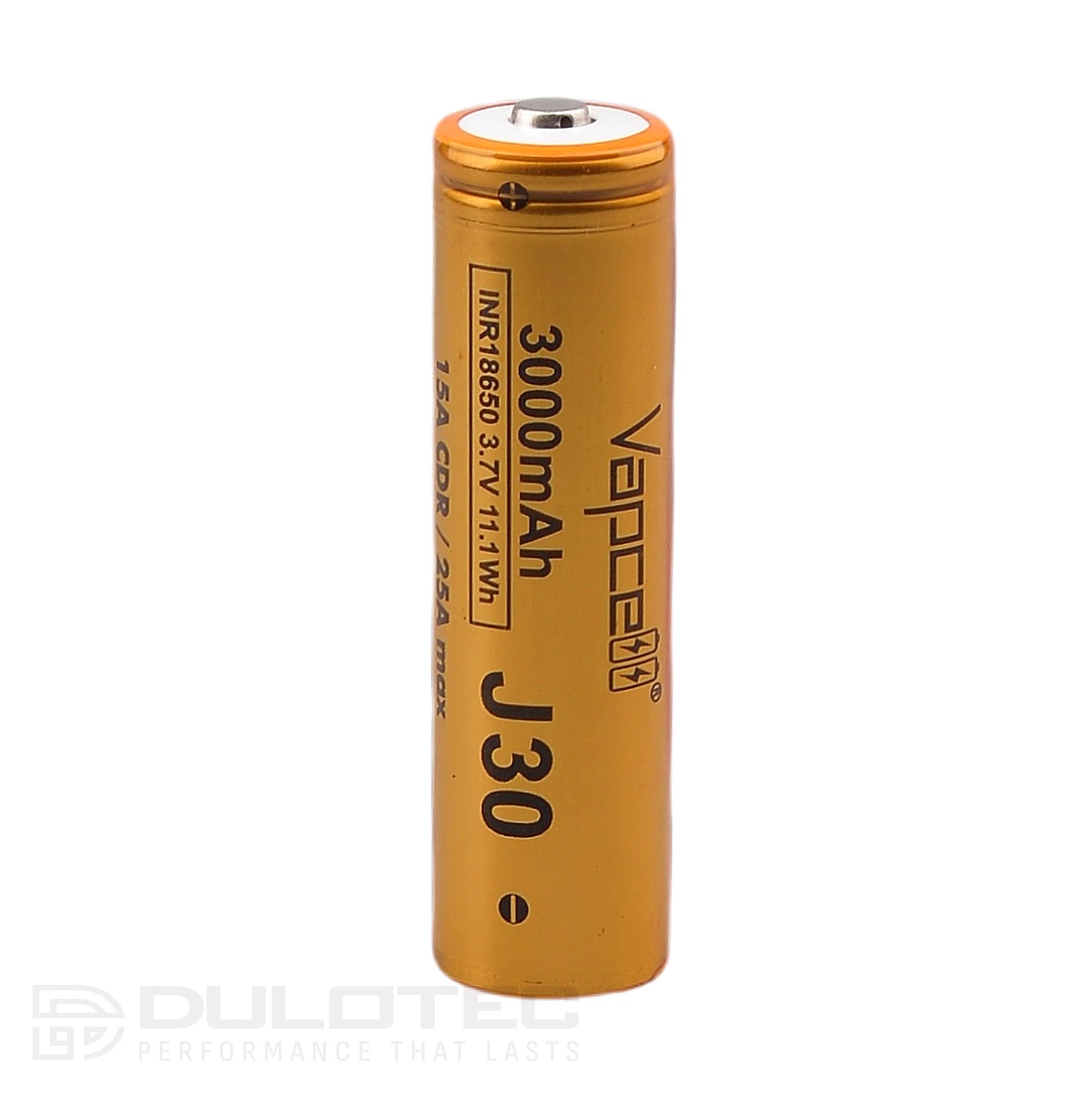

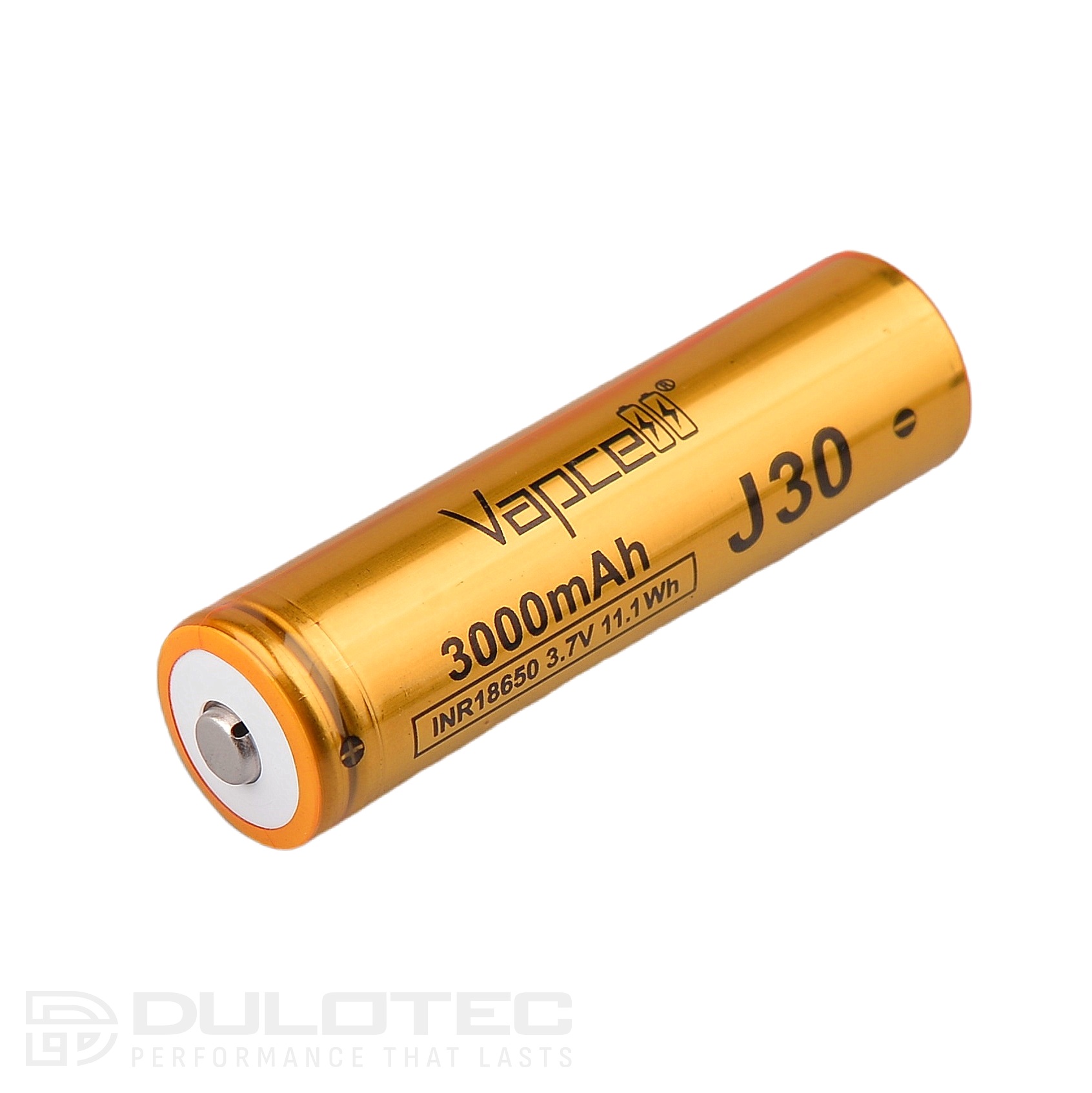

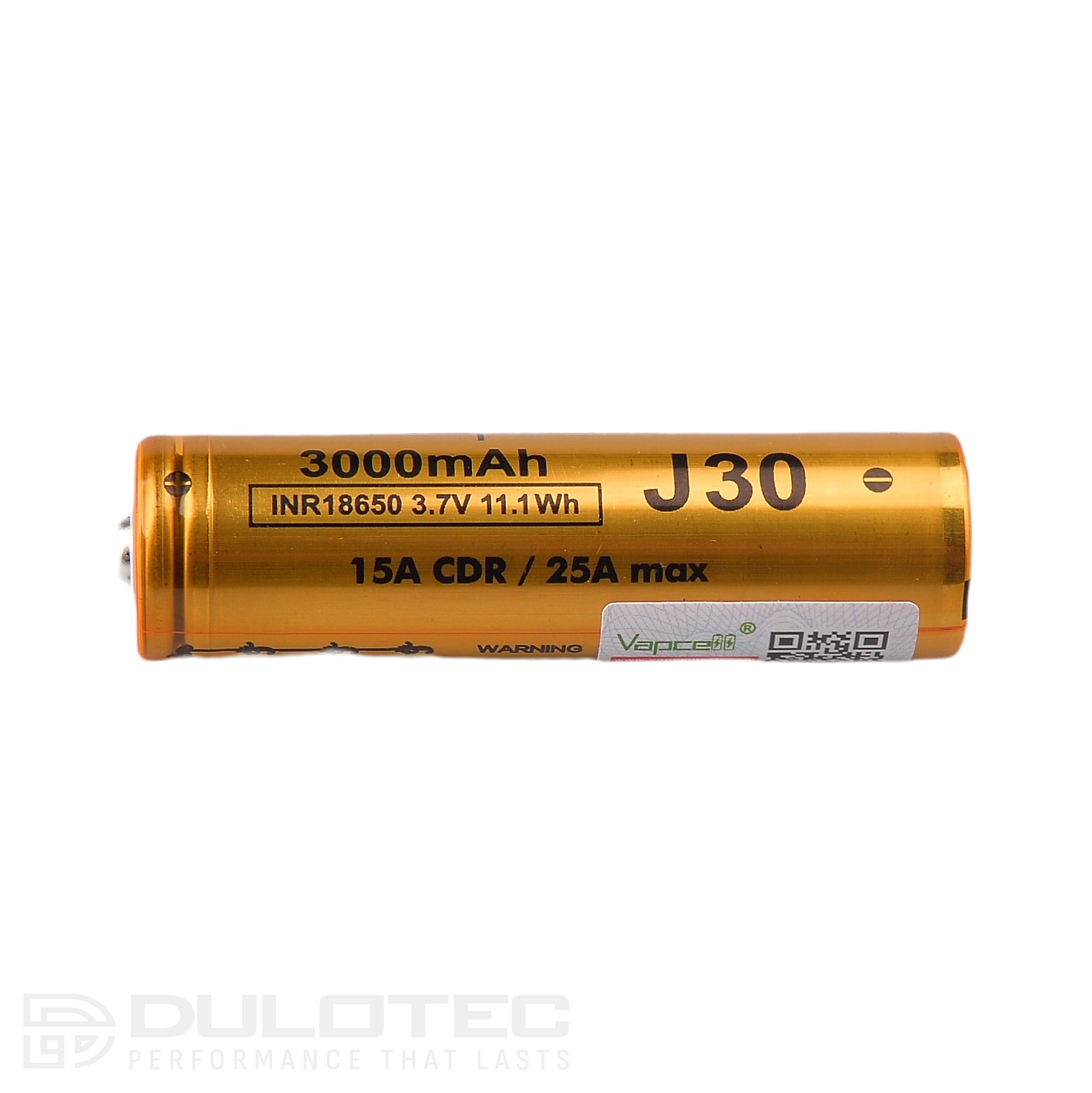

Vapcell J30 18650 Rechargeable Battery, 3000mAh, with a protruding positive terminal
The Vapcell J30 is a reliable 18650-format rechargeable battery with a rated capacity of 3000mAh and a maximum discharge current of 25A. It is suitable for flashlights that use two or more batteries, as the raised positive terminal ensures a secure connection between the cells.
Key Features of the Vapcell J30 18650
- High rated capacity—3000 mAh, minimum 2900 mAh
- Maximum continuous discharge current – 15A
- Maximum discharge current – 25A
- Rated voltage – 3.6V
- Voltage at the end of charging – 4.20V
- Discharge-end voltage – 2.5V
- Normal charging – 1500 mA, CCCV, 100 mA cut-off
- Fast charging – 3000 mA
- Tip type: protruding plus, compatible with flashlights that use two or more batteries
- Dimensions – 18.4 x 65.0 mm
- Weight: approximately 48 g
Rules for Safe Use and Storage
Warning: The battery may catch fire or explode if used improperly. Follow these guidelines:
- Do not alter, modify, disassemble, puncture, cut, crush, or short-circuit the device.
- Do not expose the battery to water, fire, or high temperatures.
- Do not use the battery in defective devices.
- Do not throw into a fire.
- Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
- Do not use the battery if the foil is damaged.
- Do not store in a pocket or purse—use a protective case.
| Specifications | Value |
|---|---|
| Brand | Vapcell |
| Model | J30 |
| Format | 18650 |
| Rated Capacity | 3,000 mAh |
| Minimum capacity | 2,900 mAh |
| Maximum continuous discharge current | 15A |
| Maximum discharge current | 25A |
| Rated voltage | 3.6V |
| Voltage at the end of charging | 4.20 V |
| Voltage at the end of the discharge | 2.5V |
| Normal charging | 1500 mA, CCCV, 100 mA cutoff |
| Fast Charging | 3000 mA |
| Peak Type | A major advantage |
| Dimensions | 18.4 x 65.0 mm |
| Weight | ~48 years |
Frequently Asked Questions
What is the battery size of the Vapcell J30?
The Vapcell J30 battery is an 18650-format battery. Its dimensions are 18.4 × 65.0 mm, making it a standard cell widely used in flashlights and other devices. It weighs approximately 48 grams.
What is the capacity of the Vapcell J30 18650?
The Vapcell J30 has a rated capacity of 3000mAh. The minimum guaranteed capacity is 2900mAh. This makes it suitable for devices that require extended use without frequent battery changes or recharging.
What is the maximum discharge current of the Vapcell J30?
The maximum continuous discharge current is 15A. If necessary, the battery can support a maximum discharge current of up to 25A. These values make it suitable for devices with higher current consumption.
What does the raised plus sign on this battery mean?
The protruding positive terminal means that the battery’s positive terminal has a protruding contact. This allows for proper electrical contact between two or more batteries connected in series in flashlights with this configuration. For flashlights with flat contacts, you should check compatibility beforehand.
How do I charge the Vapcell J30 battery?
Normal charging is at a current of 1500 mA, using the CCCV method with a cut-off of 100 mA. It also supports fast charging at a current of 3000 mA. The voltage at the end of charging is 4.20 V. Do not charge the battery at sub-zero temperatures, and do not overcharge it beyond the maximum voltage.
How should we safely store the Vapcell J30 battery?
The battery must be stored in a protective case, away from water, fire, and high temperatures. Do not place it in a pocket or bag without protection. Do not use the battery if its foil wrapping is torn or damaged. Proper storage significantly reduces the risk of accidents.
What are the main safety rules for using the Vapcell J30?
Do not modify, disassemble, or short-circuit the battery. Do not expose to water or fire. Do not use in defective devices. Do not over-discharge or charge at sub-zero temperatures. Compliance with these rules is mandatory for safe and long-lasting battery use.
Additional information
| Weight | 0,05 kg |
|---|
Reviews (0)
About brand
Vapcell was founded in 2013 and focuses primarily on the research and development, manufacturing, and sale of high-quality lithium-ion batteries and chargers for flashlights, power tools, and other devices.
VAPCELL batteries are labeled with CDR (continuous discharge rate) specifications on their casings. The brand consistently develops innovative products with high technical value.
With a strong focus on innovation and sustainable energy solutions, the brand has become a trusted name among consumers and professionals. Their products are designed to meet the requirements of various industries, such as electronics, photography, and flashlights.
