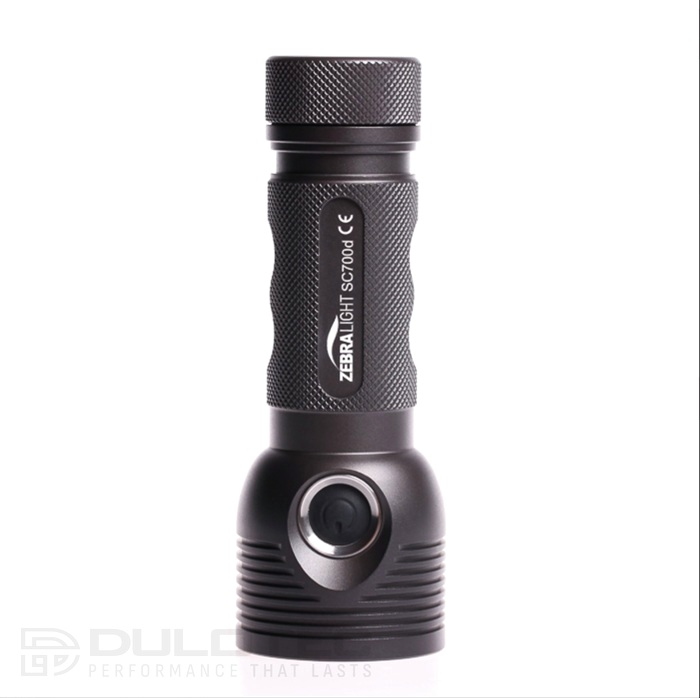

EDC flashlight ZebraLight SC700d HI – uncompromising power and efficiency

ZebraLight are among the most reliable flashlights in the world. Not because of the effect they create, but because of their actual performance. The model SC700d HI is a compact handheld flashlight made from EDC class, designed for people who know what they want from their equipment.

The LED Cree XHP70.3 HI ensures neutral white light at 5000K and color reproduction CRI 90+. The shade variation is within 3 degrees.

Why is ZebraLight different from a standard flashlight?

Unibody casing – made from a single piece of high-quality aluminium using precision CNC machining
Type III Hard Anodizing (Class I) – the coating is around 2–3 times more wear-resistant than that of a standard flashlight
Potting compound – the electronics are encased in thermally conductive silicone to ensure durability, cooling and water resistance
Constant driver – a steady light without fluctuations or flickering
Buck-boost driver – maximum efficiency with minimal battery drain
Direct Thermal Sink – direct heat dissipation from the LED to the aluminium housing
Corning Gorilla Glass and a reflector with an orange-peel texture
Beryllium copper springs in all pogo pins for exceptionally low electrical resistance
IPX8 water resistance – up to 2 metres in 30 minutes
Reverse polarity protection and built-in battery protection features

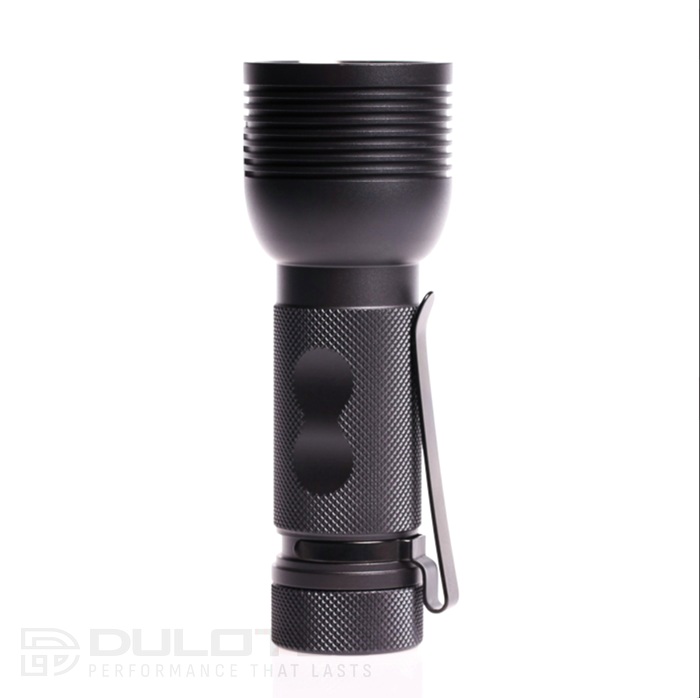

Pocket clip

What is the SC700d HI used for?

Professional use – security, inspections, technical work on electrical installations
Tourism and camping – a balance between power and range
Hunting and fishing – good color gamut and realistic color reproduction
EDC (everyday carry) – a compact and robust tool
Emergencies – long battery life in low-power modes
Search and orientation – consistent brightness

Luminous flux and operating times (with a 5000mAh battery)

High

H1: 2,600 lm – PID, 2.0 hours
H2: 1,360 lm – PID, 2.1 hours / 900 lm – PID, 2.4 hours / 550 lm – 4.1 hours

Medium

M1: 180 lm – 13.5 hours
M2: 48 lm – 2.1 days / 24 lm – 4.4 days / 11 lm – 9.4 days

Low

L1: 2.0 lm – 1.2 months
L2: 0.24 lm – 5 months / 0.08 lm – 7 months / 0.03 lm – 9 months

Beacon and Strobe modes

0.2 Hz Beacon set to Low
0.2 Hz Beacon on H1
4Hz Strobe on H1
19Hz Strobe on the H1

Operating the SC700d HI

The lantern features 3 main levels – High, Medium and Low, and beacon-strobe mode. Each main level can be programmed to one of its two sub-levels. The second sub-level of each main level can be further adjusted to different brightness levels.

Head Office

1 short click – switches to ‘High’ or switches off
2 quick clicks – publish on Medium
3 quick clicks – activates beacon-strobe mode
Hold (for more than 0.6 seconds) – switches to ‘Low’, then cycles through ‘Medium’ and ‘High’; release to set the desired level

Advanced management and configuration

Holding down the button cycles through Low, Medium and High; release it at the desired level
Double-clicking switches between the two sub-levels of the current main level; the selection is saved
6 double-clicks at a given main level launch the configuration of the second sublevel (H2, M2, L2); subsequent double-clicks cycle through different brightness levels; 1 single click saves and exits
Four quick clicks whilst the device is switched off activate the battery charge indicator (the LED flashes 1–4 times)
The Beacon-strobe is activated with 3 clicks from the off position; a double-click switches between the options; the settings are saved

PID thermal programming (for the three highest levels)

Switch off at H1 and switch on again at H1
Hold down the button and complete 6 cycles from Low to High
On the 7th (or subsequent) cycle, set the button to the desired level:
High – adds 1°C (up to a maximum of +5°C)
Medium – restores factory settings
Low – decreases by 1°C (to a maximum of -5°C)

Group modes

The flashlight has three mode groups – G5, G6 and G7. G5 is the factory default and is selected by clicking 5 times from the OFF position. G6 and G7 are selected by clicking 6 and 7 times respectively from the OFF position. The selection is retained after the flashlight is switched off and when the battery is replaced.

In all three groups, H may be H1 or H2, M may be M1 or M2, and L may be L1 or L2
From OFF: 1 click → H / 2 clicks → M / hold → cycle L → M → H

In G5

H1 is set at 2,600 lm; H2 can be 1,360, 900 or 550 lm
M1 is set at 180 lm; M2 can be 48, 24 or 11 lm
L1 is fixed at 2.0 lm; L2 can be 0.24, 0.08 or 0.03 lm

In G6 and G7

H1, H2, M1, M2, L1 and L2 can be programmed to any of the 12 available brightness levels. Six double-clicks on the selected sub-level enter programming mode. Double-click – one level up; triple-click – one level down; single click – exit. Three consecutive series of 5 clicks (or 6, or 7) reset G5 (or G6, G7) to the factory settings respectively.

WARNING: The flashlight is designed to work only with unprotected flat-top 21700 batteries. Using other types of batteries may damage the flashlight and invalidate the warranty.

Specifications	Value
Brand	ZebraLight
Model	SC700d HI
Category	Handheld EDC flashlight
LED	Cree XHP70.3 HI
color temperature (CCT)	5000K
color rendering (CRI)	90+
color deviation	3-stage
Maximum luminous flux	2600 lm
Beam type	Peripheral illumination (spill) and central beam (hot spot)
Power supply	1 x 21700 Li-ion unprotected flat-top battery (not included)
Operating voltage	2.7V – 4.3V
Low-voltage cut-off	2.7V
Head diameter	38.1 mm
Body diameter	28 mm
Length	106 mm
Weight	91 g (without battery)
Housing Material	Aluminum, Unibody, CNC-machined
Coverage	Type III Hard Anodizing, Class I
Glass	Corning Gorilla Glass
Reflector	Orange peel texture
Water Resistance	IPX8 (2 meters, 30 minutes)
Thermal Control	PID at the three highest levels
Battery Indicator	Yes – The LED flashes 1–4 times (4 short clicks from the OFF position)
Reverse Polarity Protection	Yes
Pocket clip	On
Beacon/Strobe Modes	0.2 Hz Beacon Low, 0.2 Hz Beacon H1, 4 Hz Strobe H1, 19 Hz Strobe H1
Group Modes	G5 (factory setting), G6, G7

Frequently Asked Questions

What kind of battery does the ZebraLight SC700d HI use?

The flashlight operates with only one unprotected flat-top 21700 Li-ion rechargeable battery. The battery is not included in the kit and must be purchased separately. Using protected batteries or batteries with a different contact type may damage the flashlight and void the warranty. The operating voltage is between 2.7V and 4.3V.

How bright is the ZebraLight SC700d HI?

At its maximum H1 setting, the flashlight reaches 2,600 lumens when operating with PID thermal regulation for approximately 2.0 hours on a 5,000 mAh battery. The H2 level offers a choice between 1,360, 900, or 550 lumens. At the other end of the scale, the L2 level can run for up to 9 months at the minimum setting of 0.03 lumens.

What does CRI 90+ mean, and why is it important?

CRI (Color Rendering Index) indicates how accurately light reproduces the actual colors of objects. A value of 90+ indicates very high accuracy. This is especially important for technical work—for example, in electrical installations, where you need to distinguish the actual colors of the cables. The SC700d HI has a color temperature of 5000K, which is a neutral white light similar to daylight.

Is the ZebraLight SC700d HI waterproof?

Yes. The flashlight has an IPX8 waterproof rating, which means it can withstand submersion to a depth of 2 meters for 30 minutes. The electronics are further protected—encapsulated in thermally conductive silicone (potting compound)—which contributes to durability, better cooling, and impact resistance.

How are the different brightness levels controlled?

The flashlight has three main settings: High, Medium, and Low. A single short click turns it on to High or turns it off. Two short clicks turn it on to Medium. Holding the button down for more than 0.6 seconds turns it on to Low and cycles through Medium and High. Each main level has two sub-levels, which can be switched between with a double-click. The second sub-level can be further programmed with 6 double-clicks. Beacon-strobe mode is activated with 3 clicks from the off state.

What is PID thermal control, and how do you set it up?

PID thermal regulation controls the brightness of the three highest levels to prevent overheating. It can be adjusted manually: turn the flashlight off at H1 and turn it back on at H1, hold the button, and cycle through 6 cycles from Low to High. On the 7th or subsequent cycle, set it to the desired level—High increases the temperature by 1°C (up to +5°C), Medium restores factory settings, and Low decreases the temperature by 1°C (down to -5°C).

What are the G5, G6, and G7 mode groups?

The flashlight has three mode groups. G5 is the factory default and is selected with 5 clicks from the OFF position. In this mode, H1 is fixed at 2,600 lm, M1 at 180 lm, and L1 at 2.0 lm, while the second set of levels—H2, M2, and L2—can be programmed to preset values. G6 and G7 are selected with 6 and 7 clicks, respectively, from the OFF position and allow full programming of all sub-modes to any of the 12 available brightness levels. The group selection is retained after the light is turned off and when the battery is replaced.
