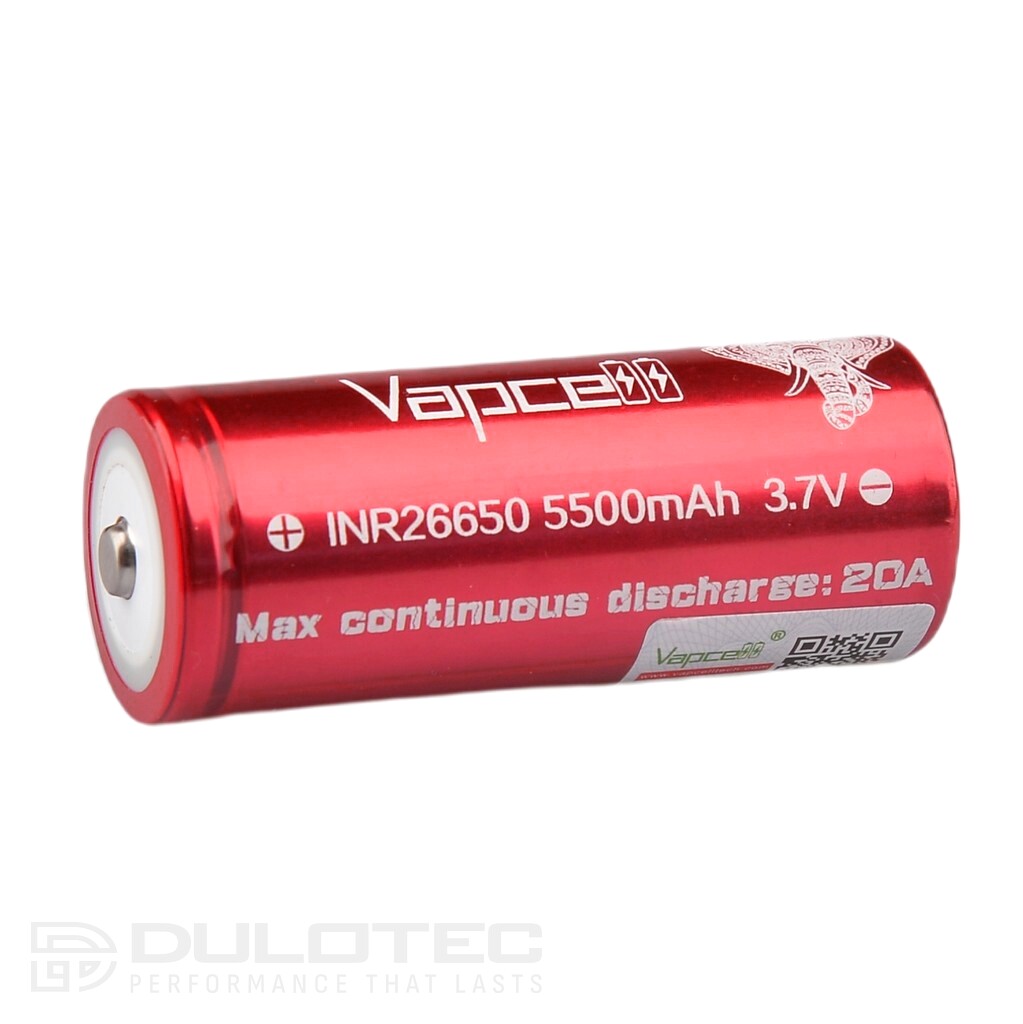

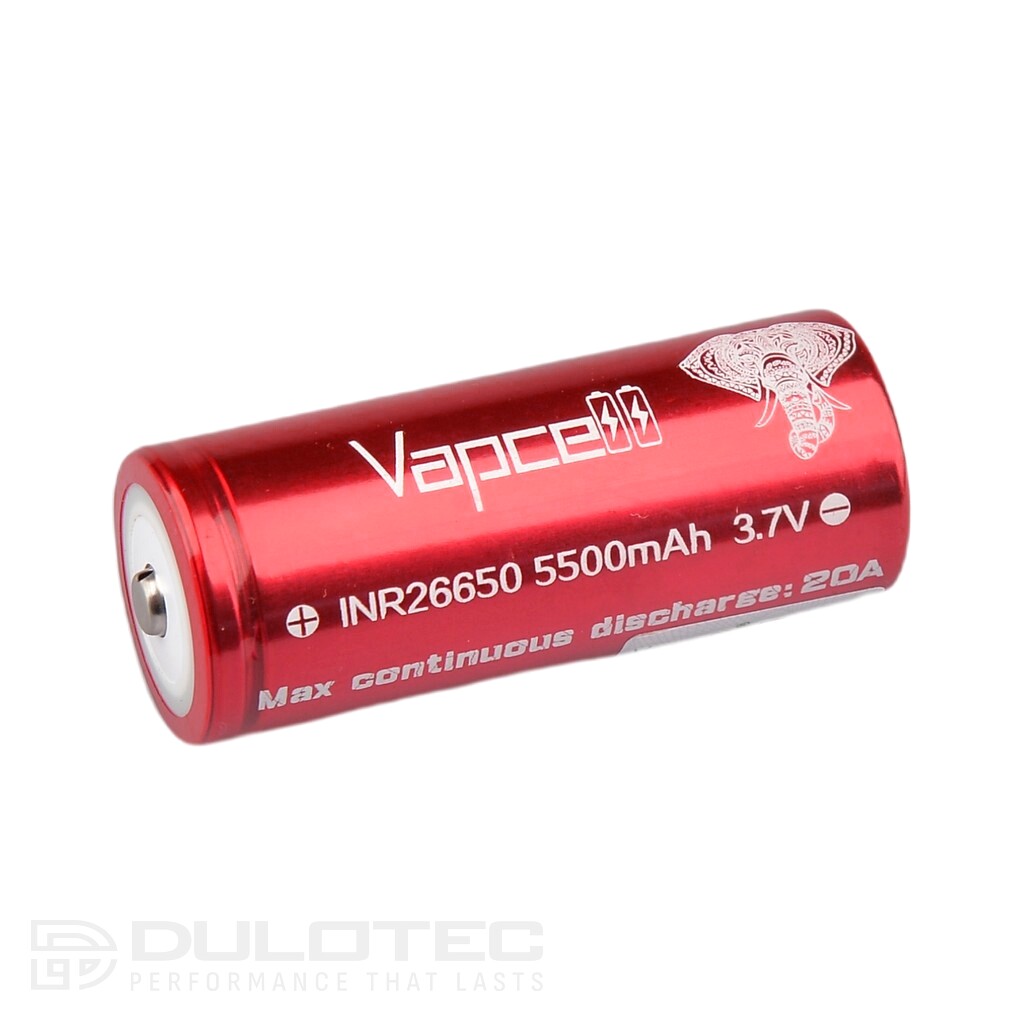

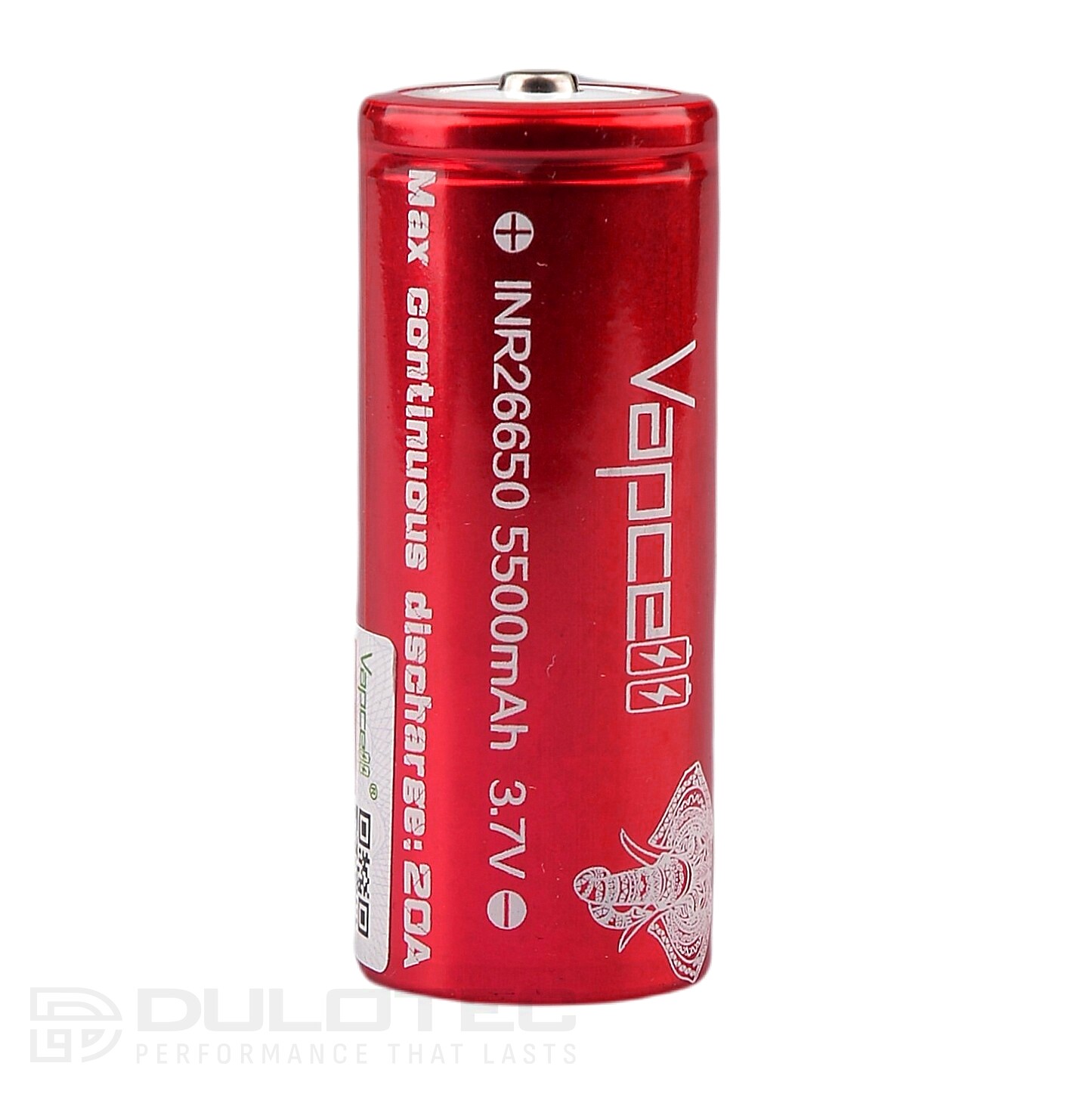

Vapcell 26650 5500mAh 20A Battery with a Protruding Positive Terminal

14,99 €

Type: 26650
Capacity: 5500mAh
Dimensions: (Height) 65.2 mm (Diameter) 26.6 mm
Voltage: 3.6V
Maximum continuous discharge current: 20 A

Add 70,00 € to cart and get FREE SHIPPING!

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Прочетох и съм съгласен с privacy policy

Vapcell 26650 Rechargeable Battery with a Capacity of 5500mAh

The Vapcell 26650 battery is a high-quality lithium-ion cell with a rated capacity of 5500mAh and a maximum discharge current of 20A. It is manufactured in China and is suitable for high-power flashlights that require a high current.

This model features a protruding plus sign, which makes it compatible with flashlights equipped with mechanical reverse-insertion protection.

Technical Specifications

Specifications	Value
Model	Vapcell 26650 5500mAh 20A
Type	INR 26,650
Rated Capacity	5,500 mAh
Minimum capacity	5,400 mAh
Rated voltage	3.6 V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5 V
Maximum discharge current	20 A
Normal charging	2000 mA
Fast Charging	3,000 mA
Elevation	65.2 mm
Diameter	26.6 mm
Weight	96
Peak Type	A major advantage
Production	China

A battery with or without protection?

Protected batteries have a built-in circuit board that protects the cell from overcharging, over-discharging, and excessive current. If a problem occurs, the protection mechanism is triggered and shuts down the battery.

It is important to note that protected batteries are slightly longer and wider than standard ones. They are not suitable for all flashlights—some devices are designed for the standard size or require a higher current.

Compatible with flashlights featuring mechanical reverse-insertion protection: Acebeam, Olight, Fenix, Nitecore, Armytec
They are not suitable for flashlights such as Zebralight and Dulotec flashlights, which are designed for unprotected batteries
Before purchasing, measure the size of the original battery in mm and compare it with the technical specifications

Instructions for Use

Charge the battery using a high-quality lithium-ion charger before using it for the first time.
Do not use in high temperatures or high humidity—operating temperature: charging 0°C to 45°C, discharging -20°C to 75°C.
Storage temperature: -5°C to 35°C.
Do not throw into fire or water—risk of fire or explosion.
Do not crush, strike, or disassemble the battery.
Keep out of reach of children.
The battery may be hot after use—handle with care.
If stored for more than 3 months without use, charge it before using it again.

Safety Rules

Do not modify, puncture, cut, or short-circuit the device.
Do not expose to water, fire, or extreme temperatures.
Do not use in defective devices.
Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
Do not use the battery if the foil is damaged.
Store in a protective case—not in a pocket or purse.

Frequently Asked Questions

What is the difference between a battery with a raised positive terminal and one with a flat positive terminal?

Batteries with a protruding positive terminal make physical contact with the springs and contacts in flashlights equipped with mechanical reverse-insertion protection. The flat positive terminal is used in devices where contact is made directly on a flat surface. The Vapcell 26650 5500mAh 20A battery has a protruding positive terminal and is suitable for flashlights such as Acebeam, Olight, Fenix, Nitecore, and Armytec.

Is this battery compatible with Dulotec or Zebralight flashlights?

Dulotec and Zebralight flashlights are designed for batteries without a protection circuit. The Vapcell 26650 5500mAh 20A battery does not have a protection circuit, so you must verify that its exact dimensions match the specific flashlight model. We recommend measuring the original battery and comparing it to the specified dimensions: 26.6 mm in diameter and 65.2 mm in height.

What charger should I use for a Vapcell 26650 battery?

Use a high-quality charger designed for lithium-ion batteries. The normal charging current for this cell is 2000 mA, and up to 3000 mA for fast charging. Do not exceed a voltage of 4.20 V during charging. Avoid cheap and untested chargers.

How do I store the battery properly?

The battery should be stored at a temperature between -5°C and 35°C. Do not leave it in a pocket or bag without protection—always use a special protective case. If the battery has not been used for more than 3 months, charge it before use. Keep it away from moisture, fire, and direct sunlight.

What is the difference between rated capacity and minimum capacity?

The battery's rated capacity is 5,500 mAh, which is the typical value under normal discharge conditions. The minimum capacity is 5,400 mAh, which is the guaranteed lower limit provided by the battery. The difference between the two values is small and demonstrates the stability of the manufacturing process.

What is the operating temperature of the Vapcell 26650 battery?

During charging, the battery operates within a range of 0°C to 45°C. During discharge, the range is significantly wider—from -20°C to 75°C. Do not charge the battery at sub-zero temperatures, as this may damage it. When storing the battery, keep it within a temperature range of -5°C to 35°C.

How can I figure out which battery is right for my flashlight?

The most reliable way is to measure the flashlight's original battery in millimeters and compare it to the technical specifications of the new battery. For the Vapcell 26650 battery, the diameter is 26.6 mm and the height is 65.2 mm. If you have any questions, feel free to contact the Dulotec.COM team, and we’ll help you choose the right cell for your device.
