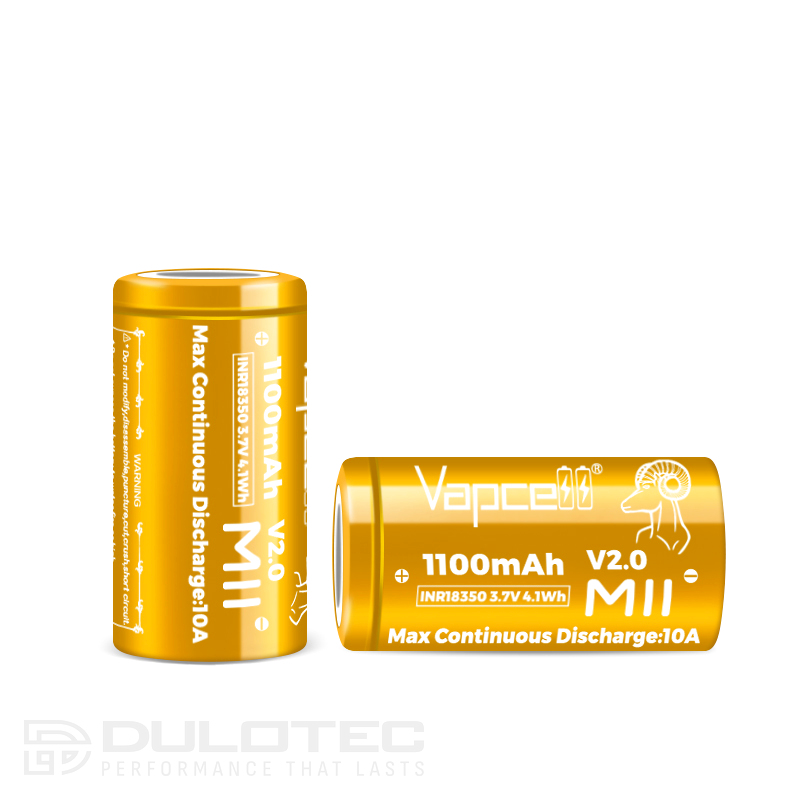

Vapcell 18350 M11 V2.0 Rechargeable Battery – High Capacity and High Discharge Current

The Vapcell 18350 M11 V2.0 is a compact lithium-ion rechargeable battery with a rated capacity of 1100mAh and a continuous discharge current of 10A. It is designed for devices that require a reliable and stable power supply.

The battery has a minimum guaranteed capacity of 1000mAh, making it reliable in use. Its small dimensions—18.0 × 35.0 mm—and weight of approximately 26 g make it convenient to carry and install in compact flashlights and devices.

Key Technical Specifications

Rated capacity: 1100mAh
Minimum capacity: 1000mAh
Rated current (continuous): 10 A
Rated voltage: 3.6V
Charging end voltage: 4.20V
Discharge-end voltage: 2.5V
Internal resistance: 25 mΩ (approx., AC 1 kHz)
Normal charging: 500 mA, CCCV, 100 mA cut-off
Fast charging: 1500 mA
Dimensions: 18.0 x 35.0 mm
Weight: ~26 g

Safety Rules for Use and Storage

The battery may catch fire or explode if used improperly. Follow these guidelines:

Do not alter, modify, disassemble, drill, cut, crush, or cause a short circuit.
Do not expose to water, fire, or high temperatures.
Do not use in defective devices.
Do not throw into a fire.
Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
Do not use the battery if the packaging is damaged.
Do not store in a pocket or purse—use a protective case.

Specifications	Value
Brand	Vapcell
Model	18350 M11 V2.0
Category	Rechargeable battery
Rated Capacity	1,100 mAh
Minimum capacity	1,000 mAh
Discharge Current (Continuous)	10A
Rated Voltage	3.6V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5V
Internal Resistance	25 mΩ (approx., AC 1 kHz)
Normal charging	500 mA, CCCV, 100 mA cutoff
Fast Charging	1500 mA
Dimensions	18.0 x 35.0 mm
Weight	~26 years

Frequently Asked Questions

What is the capacity of the Vapcell 18350 M11 V2.0 battery?

The rated capacity of the Vapcell 18350 M11 V2.0 is 1100mAh. The minimum guaranteed capacity is 1000mAh. These values make it a reliable choice for devices with higher power consumption.

What is the maximum discharge current for this battery?

The Vapcell 18350 M11 V2.0 battery supports a sustained discharge current of 10A. This makes it suitable for devices that require a stable and powerful power supply during extended use.

What are the battery's dimensions and weight?

The battery measures 18.0 × 35.0 mm and weighs about 26 grams. Its compact size makes it convenient for use in small flashlights and portable devices.

How do you properly charge the Vapcell 18350 M11 V2.0?

Normal charging is performed at a current of 500 mA using the CCCV method, with the current cut off at 100 mA. Fast charging at currents up to 1500 mA is also supported. The voltage at the end of charging is 4.20V. Do not charge at sub-zero temperatures.

What are the rules for safe battery storage?

Do not store the battery in a pocket or bag without a protective case. Keep it away from water, fire, and high temperatures. Do not use the battery if its foil is damaged or compromised. Following these guidelines reduces the risk of fire or explosion.

What is the internal resistance of this battery?

The internal resistance of the Vapcell 18350 M11 V2.0 is approximately 25 mΩ, measured at 1 kHz AC. Lower internal resistance means less energy loss and more stable voltage under load.

What is the battery voltage during discharge and charge?

The battery's nominal voltage is 3.6V. The maximum voltage when fully charged is 4.20V. The minimum permissible voltage when discharged is 2.5V. Discharging below this value is not recommended, as it may damage the cell.

Add to wishlist

SKU: d-02-07-546 Categories: Batteries, Lithium ion batteries, Rechargeable batteries

Description

Specifications	Value
Brand	Vapcell
Model	18350 M11 V2.0
Category	Rechargeable battery
Rated Capacity	1,100 mAh
Minimum capacity	1,000 mAh
Discharge Current (Continuous)	10A
Rated Voltage	3.6V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5V
Internal Resistance	25 mΩ (approx., AC 1 kHz)
Normal charging	500 mA, CCCV, 100 mA cutoff
Fast Charging	1500 mA
Dimensions	18.0 x 35.0 mm
Weight	~26 years

Additional information

Weight	0,2 kg

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Vapcell 18350 M11 1100mAh 9A Battery”

About brand

Vapcell was founded in 2013 and focuses primarily on the research and development, manufacturing, and sale of high-quality lithium-ion batteries and chargers for flashlights, power tools, and other devices. VAPCELL batteries are labeled with CDR (continuous discharge rate) specifications on their casings. The brand consistently develops innovative products with high technical value. With a strong focus on innovation and sustainable energy solutions, the brand has become a trusted name among consumers and professionals. Their products are designed to meet the requirements of various industries, such as electronics, photography, and flashlights.
