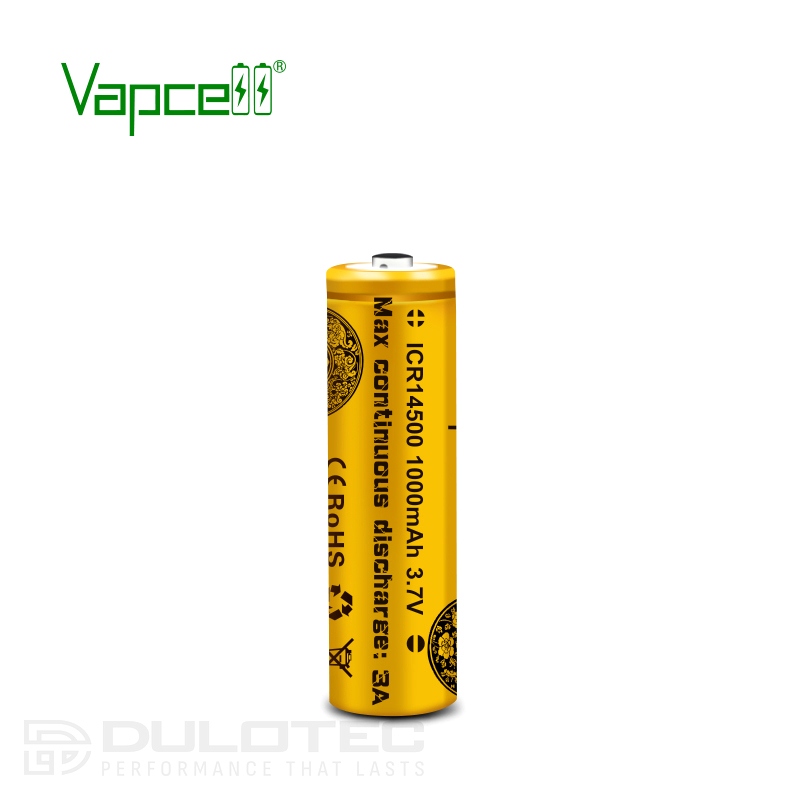

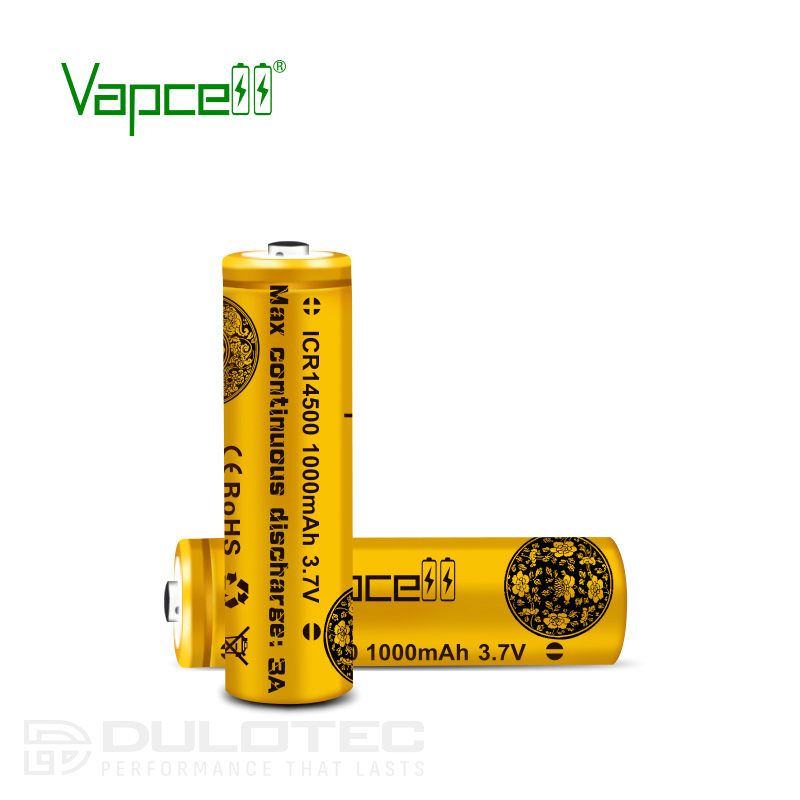

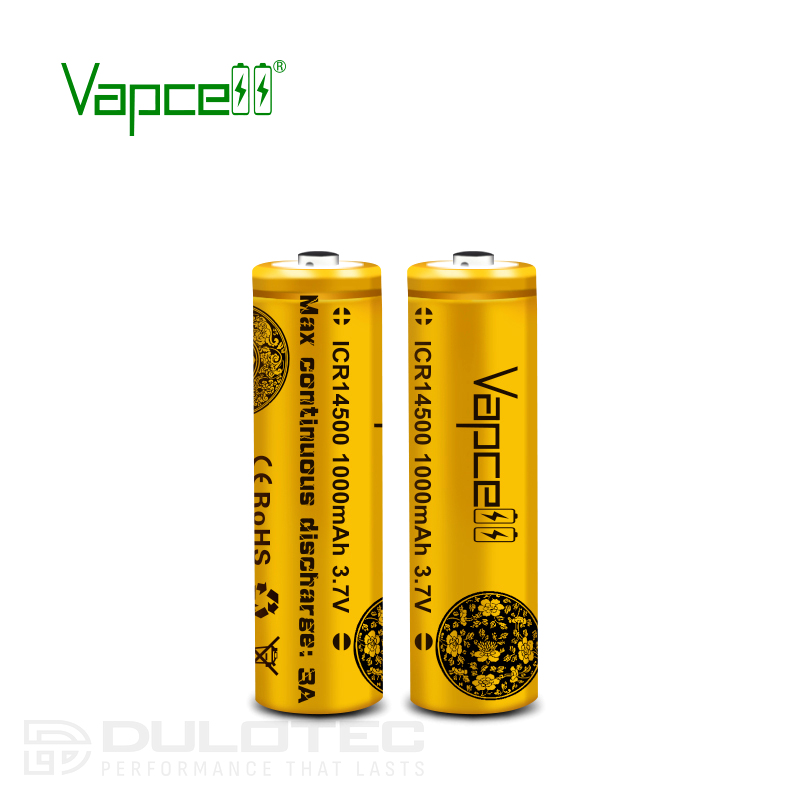

Vapcell 14500 1000mAh 3A Battery with a Protruding Positive Terminal

5,99 €

Type: 14500
Capacity: 1000mAh
Dimensions: (Height) 48.6 mm (Diameter) 14.1 mm
Voltage: 3.6V
Maximum continuous discharge current: 3A

Add 70,00 € to cart and get FREE SHIPPING!

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Прочетох и съм съгласен с privacy policy

Vapcell 14500 Lithium-Ion Battery with a Capacity of 1000mAh

The Vapcell ICR 14500 is a reliable lithium-ion battery with a capacity of 1000mAh and a maximum continuous discharge current of 3A. It has a raised positive terminal and is compatible with a wide range of flashlights.

Technical Specifications

Voltage: 3.7 V
Capacity: 1,000 mAh (at a 0.2 C discharge rate)
Minimum capacity: 900 mAh (at a 0.2 C discharge rate)
Maximum continuous discharge current: 3 A
Fast charging: 1000 mA
Standard charging: 500 mA – CCCV, shuts off at 50 mA
Charging end voltage: 4.20 V
Discharge-end voltage: 2.5 V
Peak type: Prominent
Color: Gold
Weight: 25 g

Specifications	Value
Brand	Vapcell
Model	ICR 14500 1000mAh
Series	14500
Capacity	1,000 mAh (0.2 C discharge)
Minimum capacity	900 mAh (0.2 C discharge)
Voltage	3.7 V
Voltage at the end of charging	4.20 V
Voltage at the end of the discharge	2.5 V
Maximum continuous discharge current	3A
Fast Charging	1,000 mA
Standard Loading	500 mA – CCCV, shuts off at 50 mA
Peak Type	Prominent
Color	Gold
Weight	25 g

A battery with or without protection?

Batteries with protection circuits contain a small circuit board in the anode or cathode. It protects against overcharging, over-discharging, and excessive current—in case of danger, the protection circuit automatically shuts off.

Batteries with protection have a raised positive terminal and are suitable for flashlights with mechanical reverse-polarity protection—a feature typical of brands such as Acebeam, Olight, Fenix, Nitecore, and Armytec. They are not suitable for flashlights designed for unprotected batteries—such as Zebralight.

Protected batteries are slightly longer and wider than standard ones because they contain additional components. Before purchasing, measure the original battery in millimeters and compare it with the technical specifications of the new one.

Safety Guidelines

Lithium-ion batteries can catch fire or explode if used improperly. Follow these guidelines:

Do not modify, disassemble, puncture, cut, or crush the battery. Do not short-circuit it.
Do not expose to water, fire, or high temperatures.
Do not use in defective devices.
Do not throw into a fire.
Do not overcharge or undercharge the battery. Do not charge the battery at sub-zero temperatures.
Do not use the battery if the foil is damaged.
Do not carry it in your pocket or purse—always use a protective case.

Frequently Asked Questions

What is the difference between a 14500 battery and a regular AA battery?

The 14500 battery is similar in size to a standard AA battery, but it is a lithium-ion battery and operates at a voltage of 3.7 V. A standard AA battery operates at 1.5 V. Because of this difference, the 14500 is not interchangeable with an AA battery in devices that do not support the higher voltage. The Vapcell ICR 14500 1000mAh is designed specifically for flashlights and devices intended for 14500-type lithium-ion cells.

What is the difference between a battery with protection and a battery without protection?

Protected batteries have a small built-in circuit board that protects the cell from overcharging, over-discharging, and excessive current. When values exceed the permissible limits, the circuit board automatically shuts down the battery. Unprotected batteries do not have this circuit board—they are more compact and can deliver a higher current. The Vapcell ICR 14500 1000mAh is a battery without a built-in protection circuit. Before use, check to make sure your flashlight is compatible with unprotected batteries.

Is this battery compatible with my flashlight?

The Vapcell 14500 with a protruding positive terminal is compatible with flashlights designed for 14500-type lithium-ion batteries without a protection circuit. Measure the size of your flashlight’s original battery in millimeters and compare it to the dimensions of this cell. If you have any questions, contact the Dulotec.COM team—they’ll help you choose the right battery for your device.

How do I properly charge a Vapcell 14500 battery?

Standard charging is performed at 500 mA using the CCCV method, with the charger shutting off when the current reaches 50 mA. Fast charging is permitted at 1000 mA. The voltage at the end of charging is 4.20 V. Do not charge the battery at sub-zero temperatures, and do not overcharge it beyond the maximum voltage. Use only chargers designed for 14500-type lithium-ion batteries.

How do I store lithium-ion batteries safely?

Lithium-ion batteries must be stored in a special protective case, away from metal objects, moisture, and heat sources. Never store them in a pocket or bag without protection, as contact with coins or keys can cause a short circuit. Do not expose the batteries to direct sunlight or temperatures above the permissible limits. If the battery’s foil is damaged, do not use it.

What is the maximum discharge current of the Vapcell 14500 1000mAh battery?

The maximum continuous discharge current for this battery is 3A. The end-of-discharge voltage is 2.5 V. Do not discharge the battery below this voltage, as this may cause irreversible damage. These specifications make it suitable for flashlights with moderate to medium power consumption designed for the 14500 format.

What should I do if the battery gets too hot while charging?

If the battery becomes unusually hot during charging, stop the process immediately and unplug the charger from the power source. Place the battery on a safe, non-flammable surface away from flammable materials. Do not reuse it or attempt to recharge it. Overheating may be a sign of damage or incompatibility with the charger. If in doubt, contact the Dulotec.COM team for advice.
